RM50DFPB-22 50 Amp RV / Outdoor Power Outlet Box

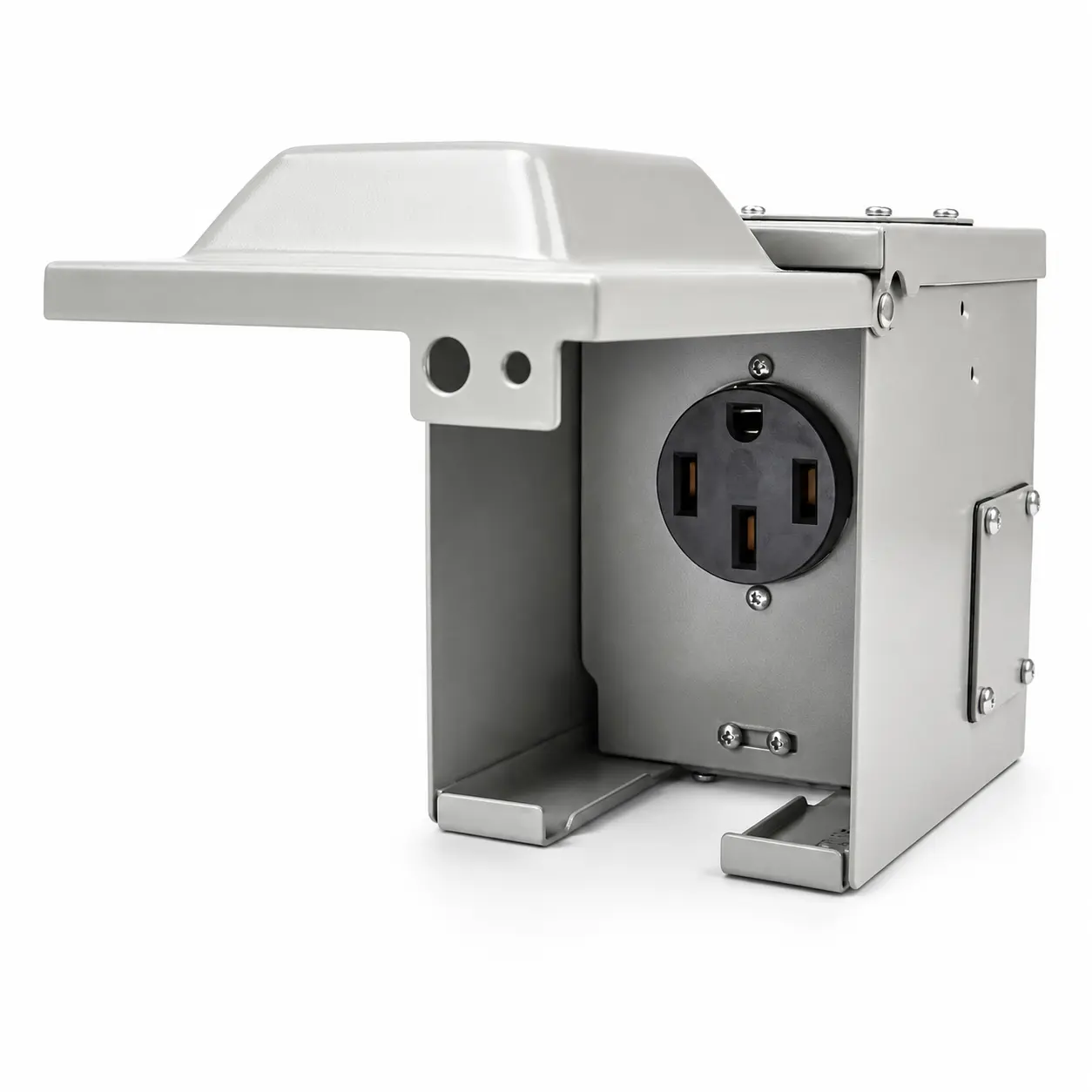

The RM50DFPB-22 is a hardwired, heavy-duty 50 Amp RV / Outdoor Power Outlet Box built around the industry-standard NEMA 14-50R receptacle. It provides a 125 / 250V AC, 3-pole / 4-wire connection point for RV shore power, travel trailers, motorhomes, portable EV charging units, generators, and outdoor power taps.

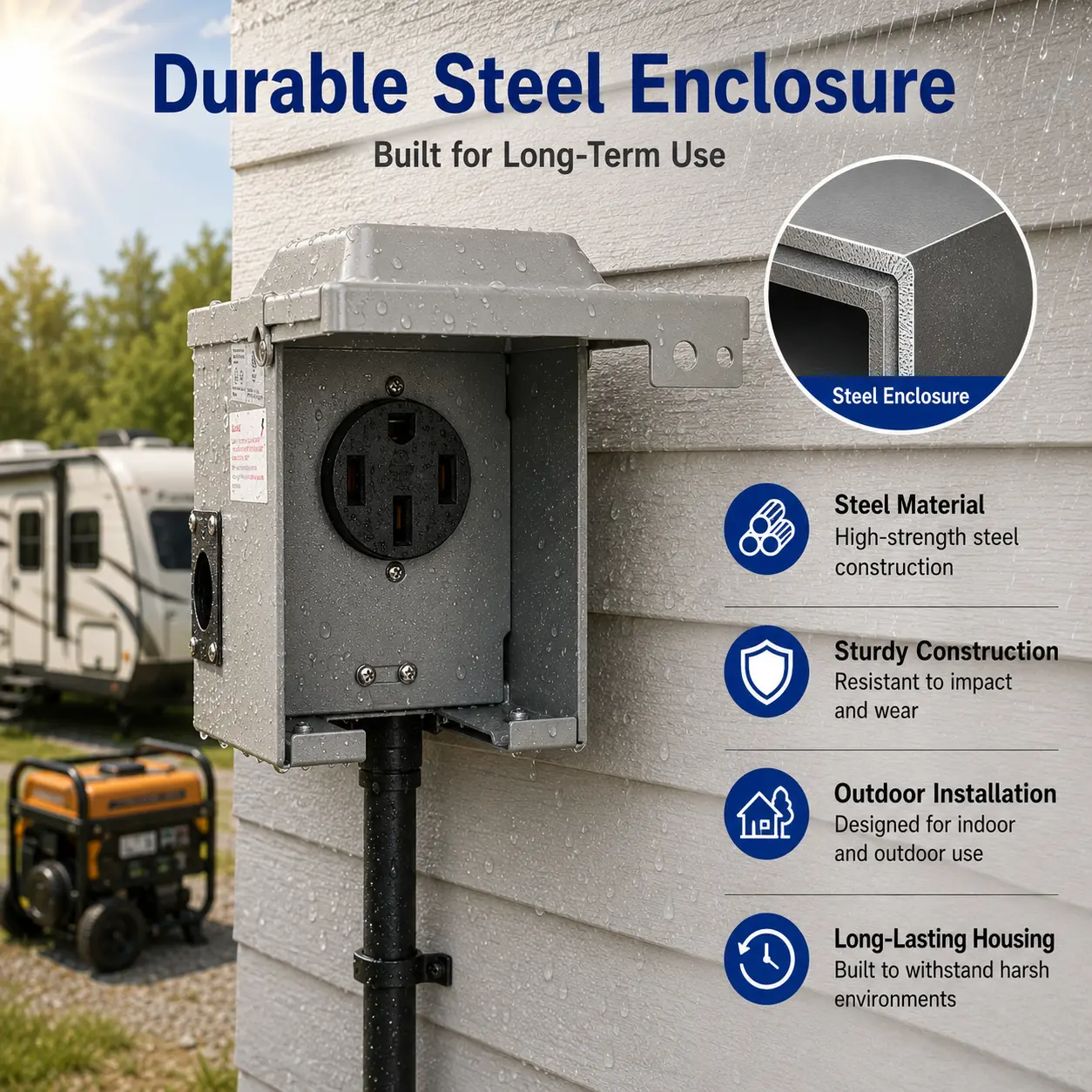

The unit uses a steel housing with a painted finish for improved impact resistance and exterior durability compared with lightweight plastic alternatives. Its flip / swing protective cover is padlockable when the plug is engaged, helping reduce accidental unplugging, casual cord removal, or unauthorized power use.

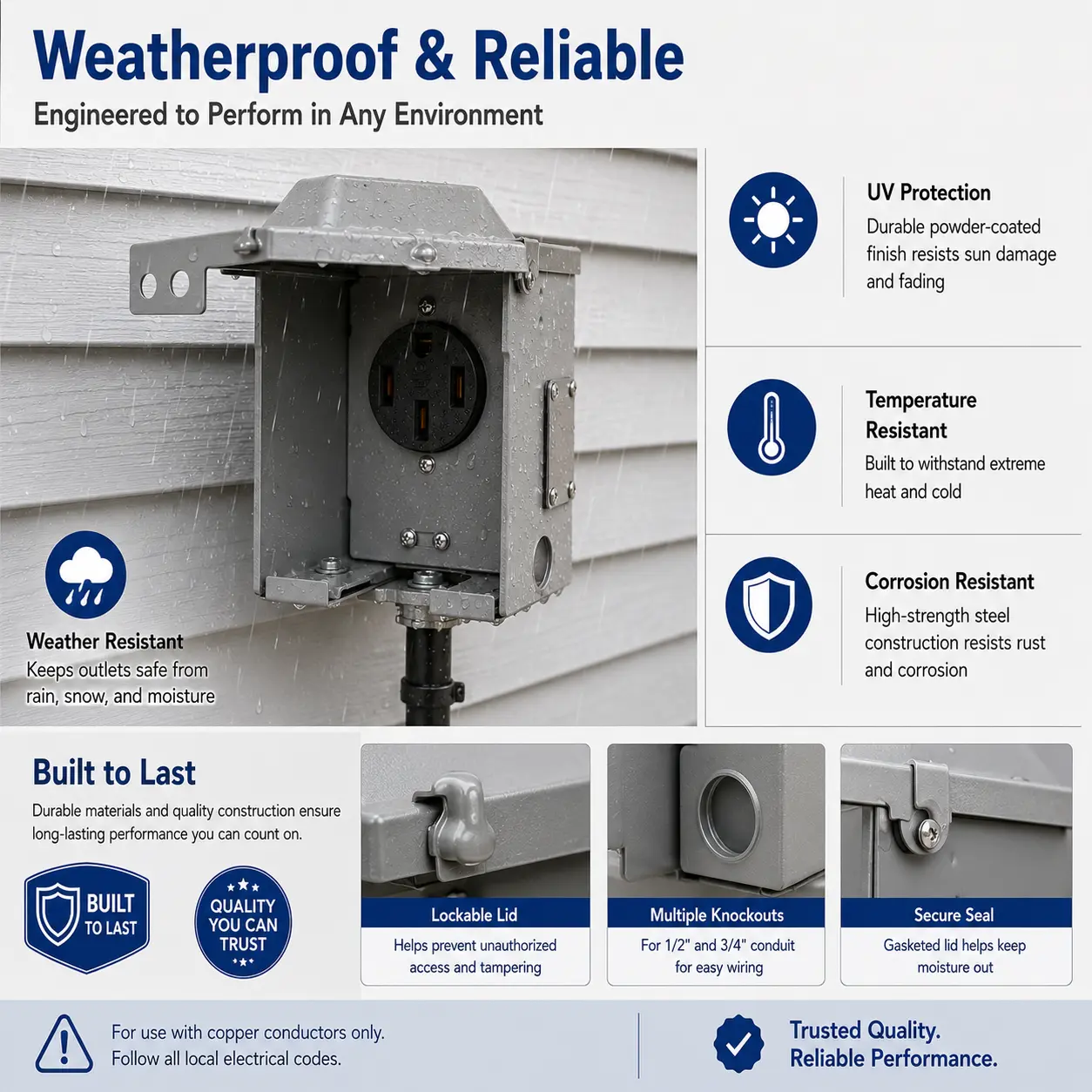

Designed for wall or post mounting, this outlet box is suitable for indoor or outdoor-capable installations. Weather resistance depends on correct mounting, conduit sealing, drainage, and use of appropriate fittings or gaskets at the knockout entries.
The RM50DFPB-22 is intended for hardwired installation through conduit or jacketed cable into KO openings. It is commonly used with #4 AWG to #8 AWG copper conductors, subject to local electrical code and AHJ requirements. A dedicated 50A 2-pole branch circuit should be sized and installed by a qualified electrician.
With ETL Listed safety compliance, a spacious steel enclosure, and a standard 14-50R interface, the RM50DFPB-22 offers a clean, code-conscious shore-power or 50A outdoor receptacle point for residential, workshop, ranch, campsite, and utility applications.
- 50 Amp RV / Outdoor Power Outlet Box for dedicated high-power connection points.

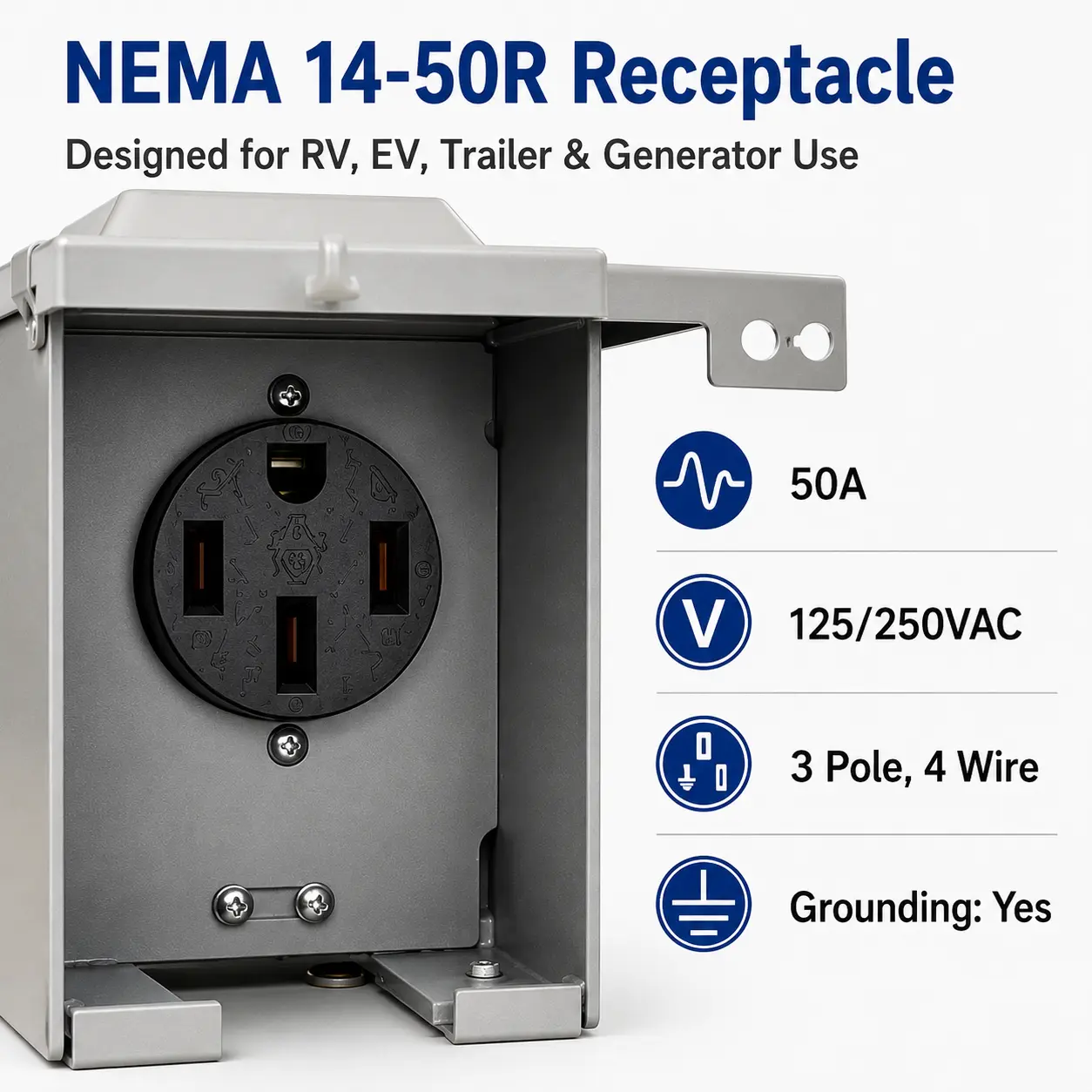

- NEMA 14-50R straight blade receptacle with 3-pole / 4-wire L1-L2-N-G configuration.
- Rated for 50A current and 125 / 250V AC operation.
- 50 / 60 Hz frequency compatibility for standard power systems.

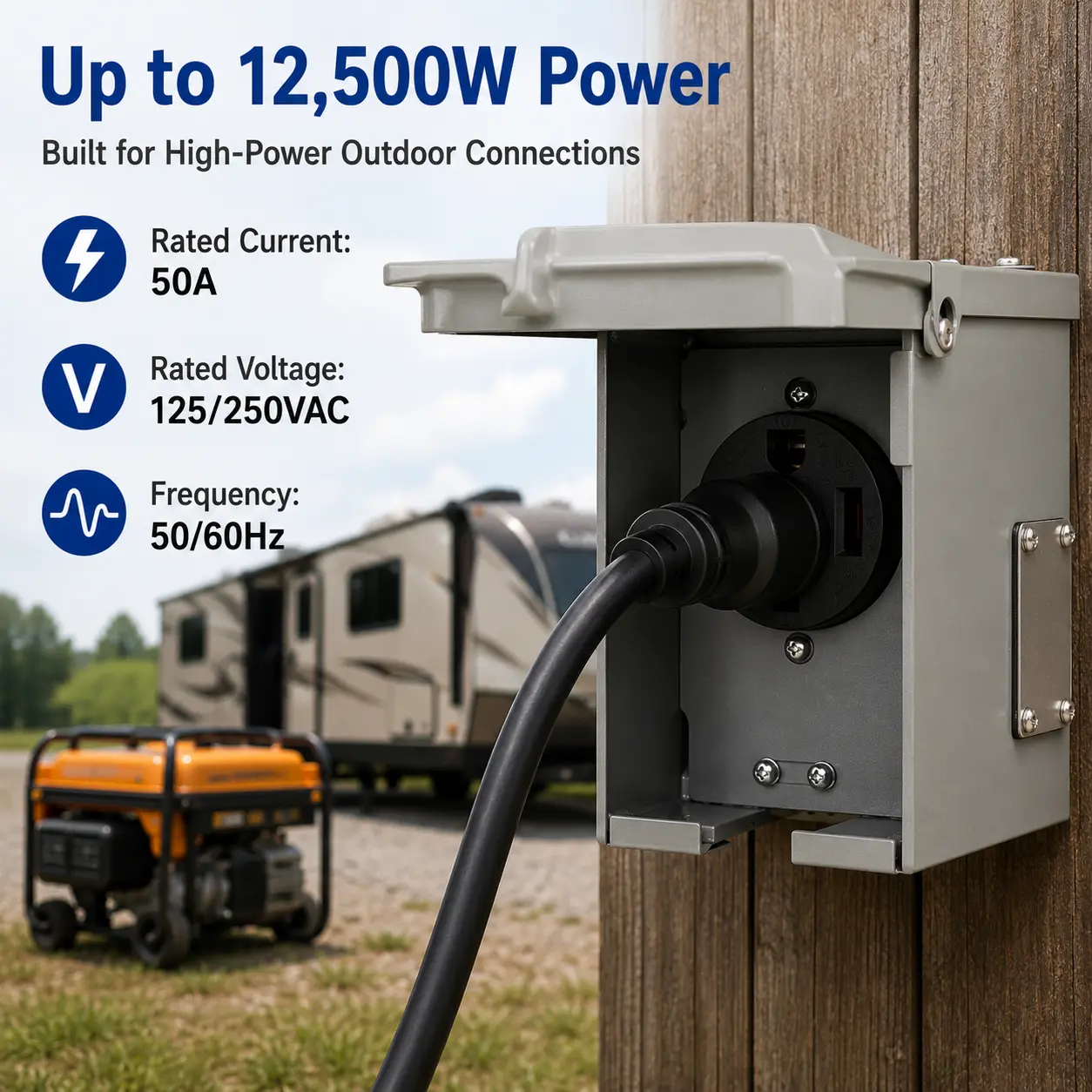

- Maximum power rating of 12,500W at 250V.
- Hardwired wiring method through conduit or jacketed cable via KO openings.
- Typical #4 AWG to #8 AWG copper conductor range, subject to local code and AHJ approval.
- Steel housing with painted finish for durable indoor or outdoor-capable installation.
- Padlockable flip / swing protective cover when the plug is engaged.
- Self-grounding through bonded steel enclosure, with equipment ground required at the supply side.

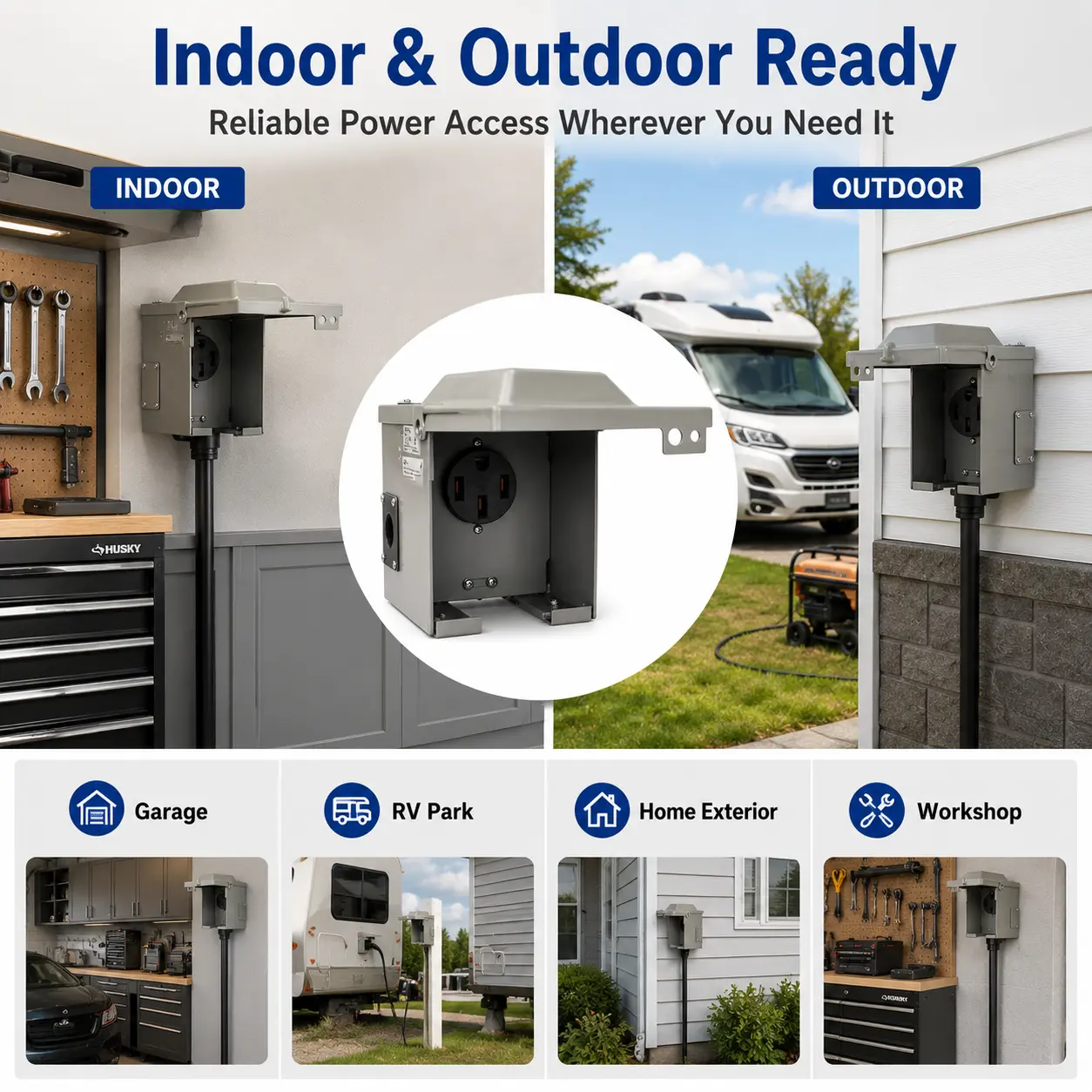

- Wall or post mount design for driveways, barns, ranch pads, workshops, and private campsites.

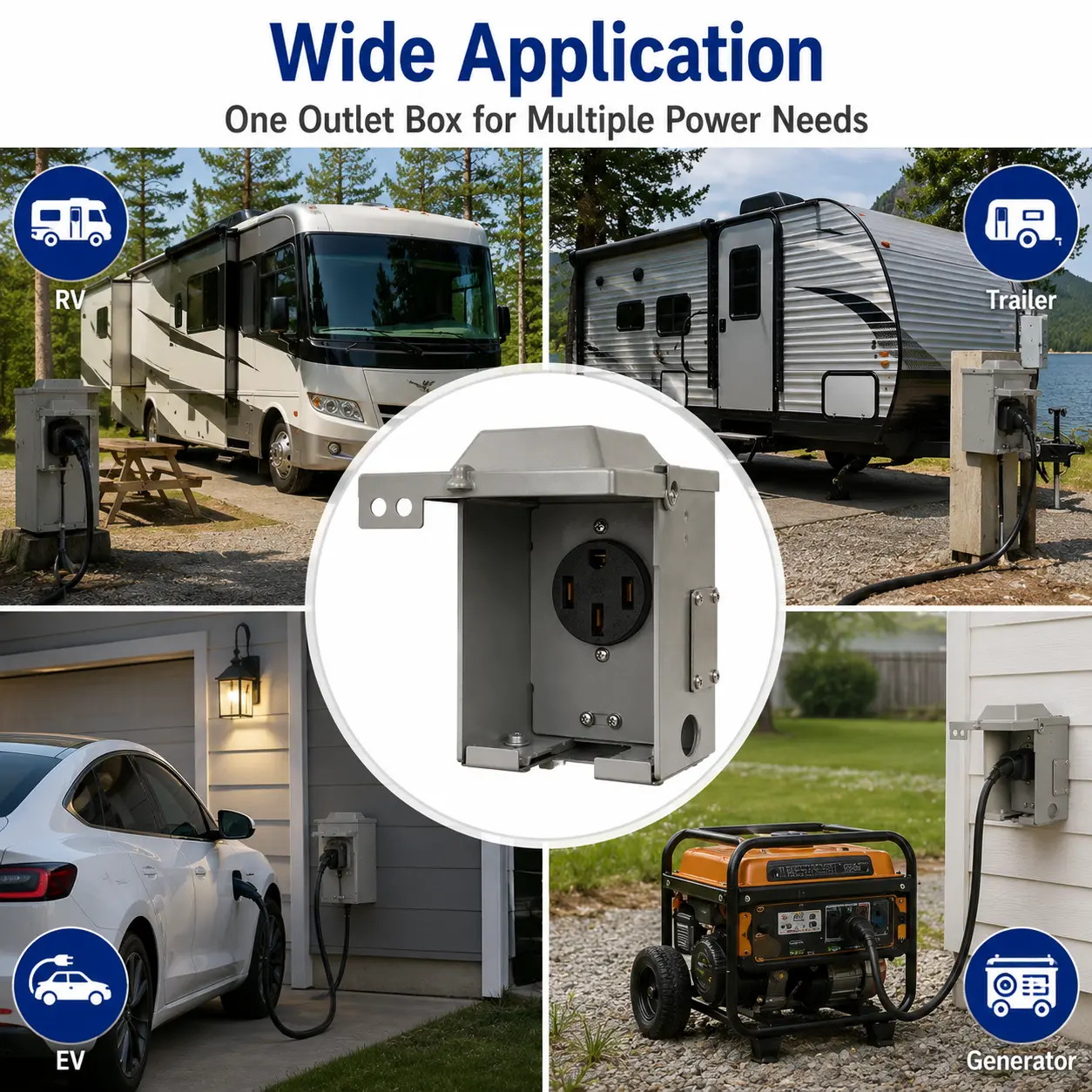

- Suitable for RV shore power, travel trailers, motorhomes, portable EV / PHEV charging, generators, welders, and 50A workshop taps.
- Compact 7.09 × 5.31 × 6.89 in enclosure with 4.59 lb net weight.
- ETL Listed for recognized third-party safety compliance.
| Model | RM50DFPB-22 |
|---|---|
| Product Name | 50 Amp RV / Outdoor Power Outlet Box |
| Receptacle Type | NEMA 14-50R (Straight Blade, 3-Pole, 4-Wire: L1-L2-N-G) |
| Rated Current | 50A |
| Voltage | 125 / 250V AC |
| Frequency | 50 / 60 Hz |
| Max. Power | 12,500W @ 250V |
| Grounding | Self-grounding via bonded steel enclosure; equipment ground required at supply side |
| Wiring Method | Hardwire through conduit or jacketed cable via KO openings; copper conductors recommended |
| Conductor Range | Typical #4 AWG to #8 AWG copper; follow local code and AHJ requirements |
| Enclosure Material | Steel housing, painted finish |
| Cover | Flip / swing protective cover; padlockable when plug is engaged; lock not included unless stated |
| Mounting | Wall / post mount; indoor or outdoor capable, depending on proper conduit sealing and mounting |
| Overall Dimensions | 7.09 × 5.31 × 6.89 in / 18 × 13.5 × 17.5 cm |
| Net Weight | 4.59 lb / 2.08 kg |
| Safety / Compliance | ETL Listed |
| In the Box | Outlet box ×1 · Installation guide ×1 · Mounting hardware optional / selected at checkout |
Download the 50 A RV Power Outlet Box manual for detailed product operation, installation guidance, safety instructions, maintenance information, and technical reference.
Download User Manual
