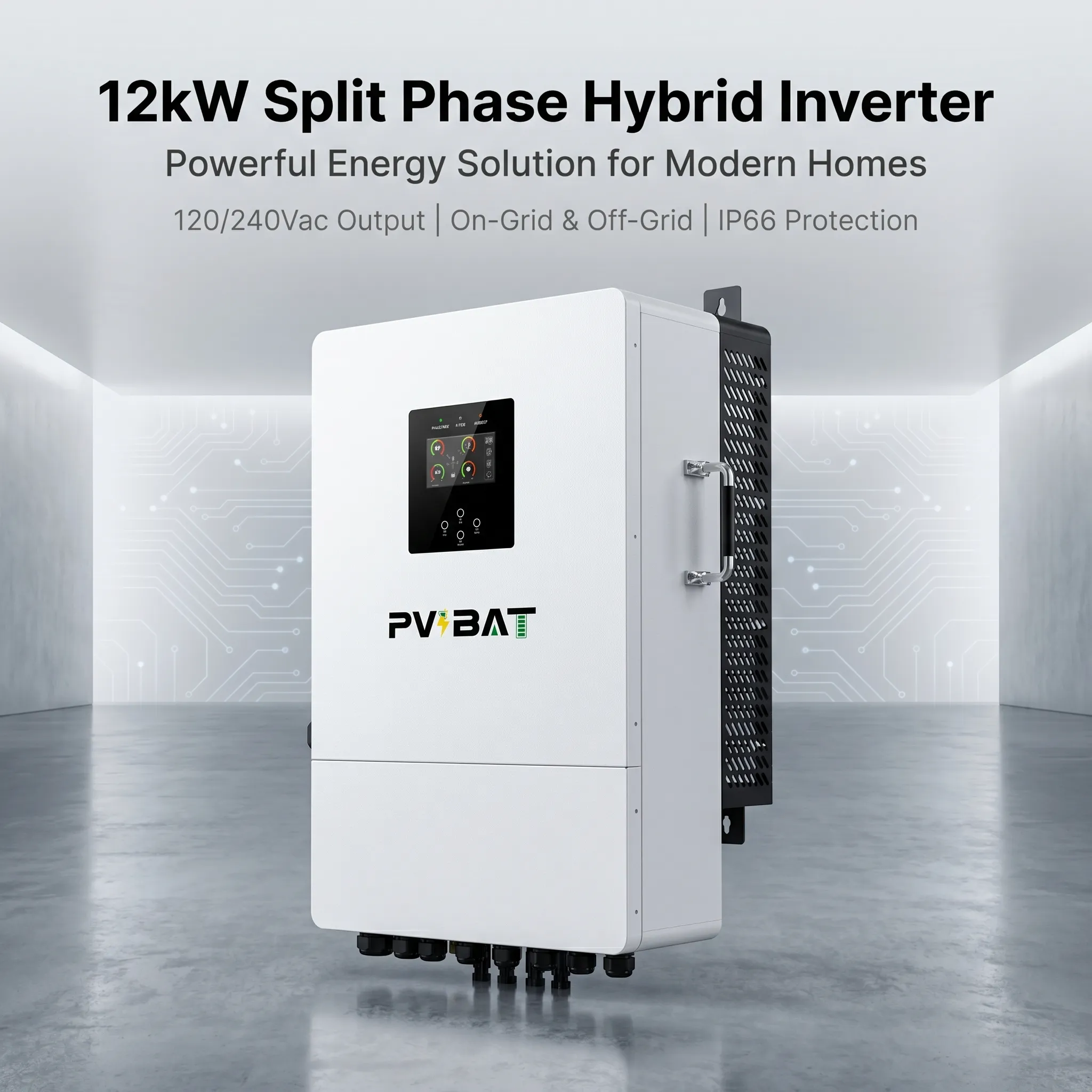

PVBAT L2P G2 IP66 12kW Split Phase Hybrid Inverter
The PVBAT L2P G2 IP66 12kW Split Phase Hybrid On/Off-Grid Energy Storage Inverter is built for residential solar energy storage, home backup power, self-consumption systems, and smart energy management. It supports 120/240Vac split phase input and output with an L1/L2/N/PE configuration, making it suitable for both grid-connected and off-grid solar applications.
With a rated power of 12000VA / 12000W and 24000VA surge power, this 12kW hybrid inverter is engineered to support demanding household loads while coordinating solar PV, battery storage, utility power, and home loads in one efficient energy storage system. In battery mode, the AC output voltage regulation is 120/240Vac split phase with ±5% accuracy, and the rated output frequency is 50/60Hz.
The inverter is designed for 48VDC battery systems and supports lithium and lead-acid batteries. Its charge parameters include 54VDC floating charge voltage, 63VDC overcharge protection, 200A maximum solar charge current, 150A maximum AC charge current, and 200A maximum charge current.
For solar charging, the PVBAT L2P G2 IP66 12kW inverter features dual MPPT input with 6500W × 2 maximum PV array power, 500VDC maximum PV array open voltage, 60–450VDC MPPT voltage range, 22A + 22A maximum PV input current, and 2 MPPT trackers/strings for efficient residential PV energy harvesting.
The system supports smart load management, flexible rate tariff operation, app and website monitoring, standard RS232, USB, CAN and RS485 communication, and optional WiFi. With IP66 protection, 93% peak efficiency, optional parallel operation for up to 6 units, and a 5-year warranty, it is a dependable 12kW split phase hybrid inverter for modern home solar power and energy storage systems.
- 12kW split phase hybrid inverter rated at 12000VA / 12000W for residential solar energy storage and backup power.
- Supports both on-grid and off-grid operation for grid-connected solar storage, off-grid backup, and self-consumption systems.

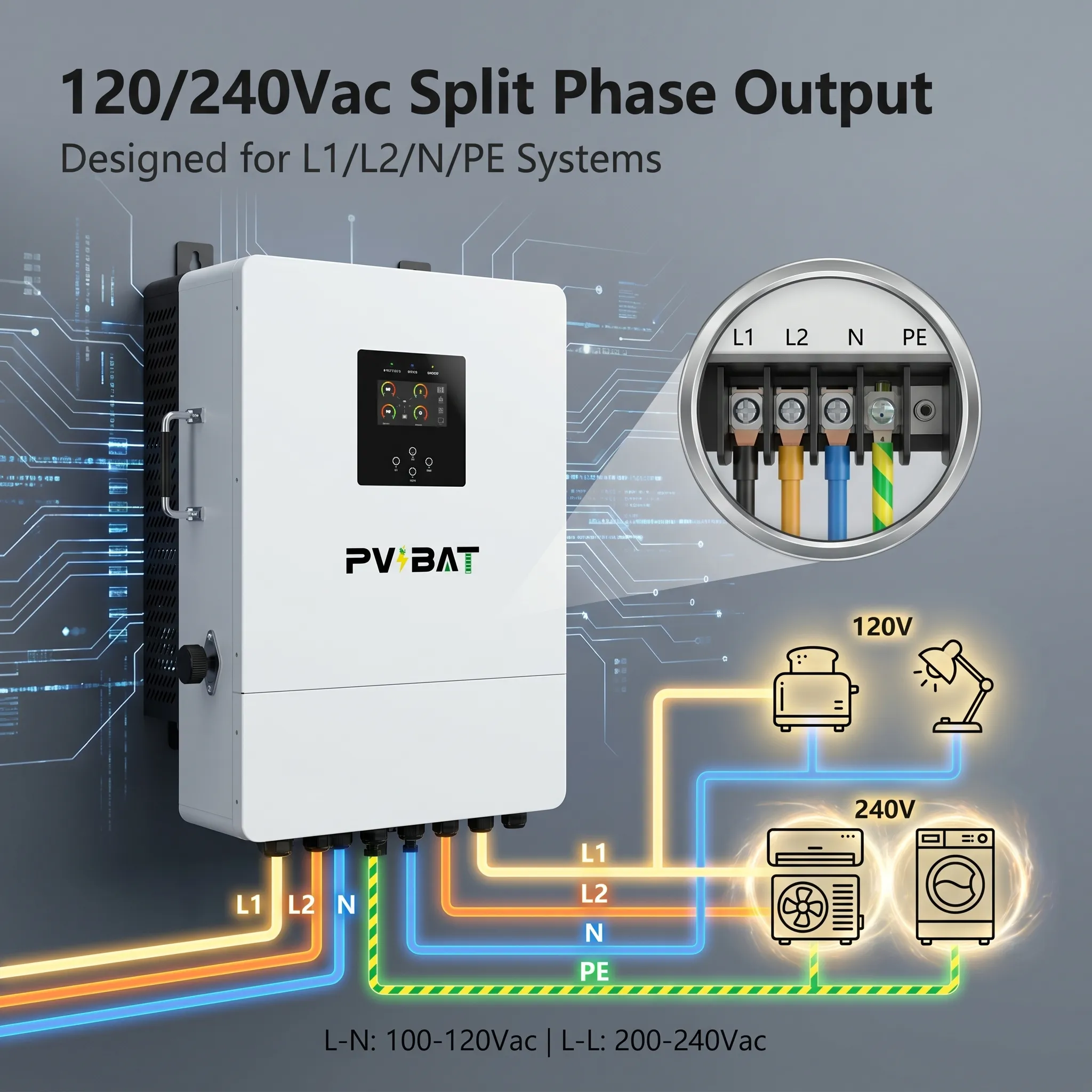

- 120/240Vac AC input and output with L1/L2/N/PE split phase configuration.
- 24000VA surge power provides strong overload capability for demanding household loads.

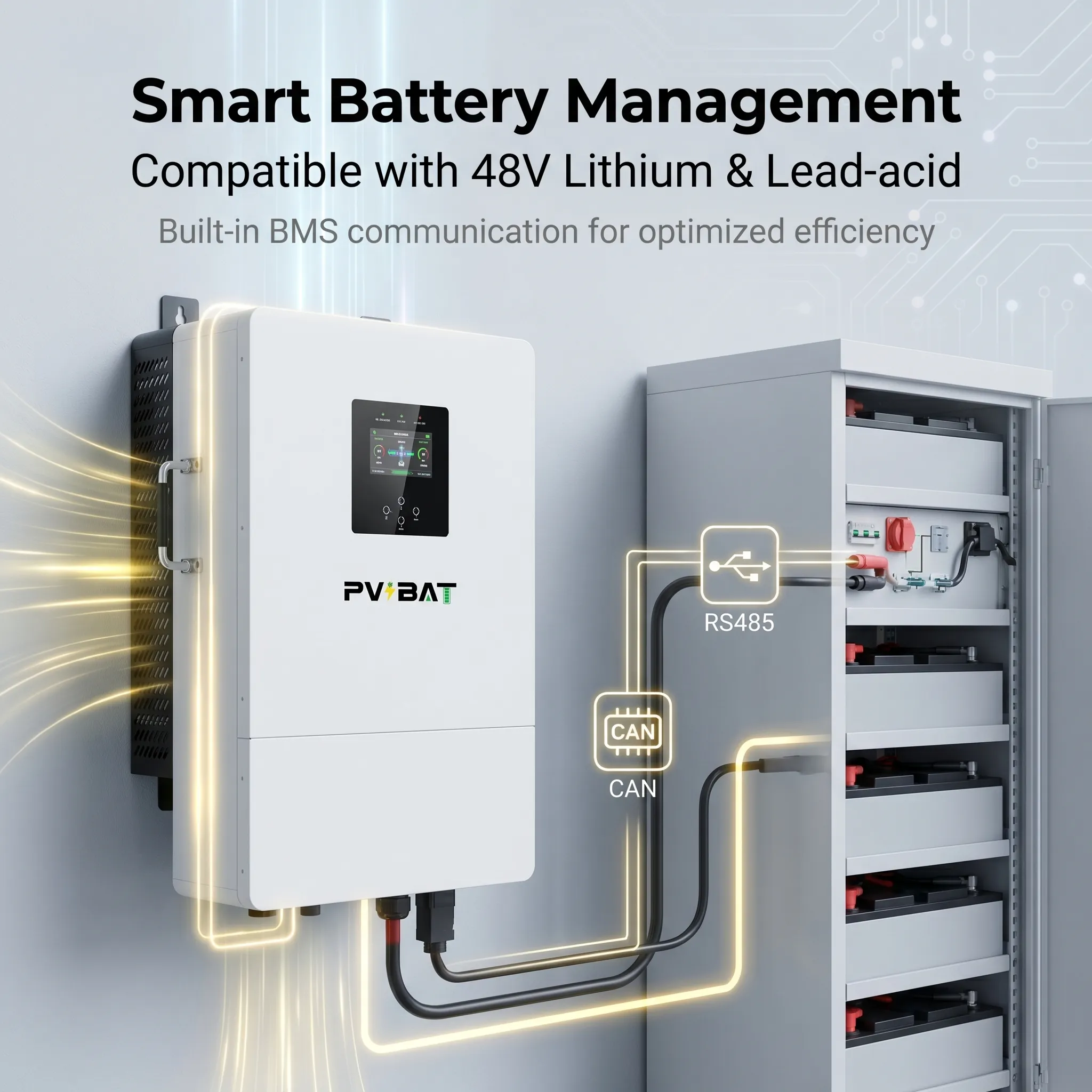

- 48VDC battery system compatibility with lithium and lead-acid battery support.
- Battery charging parameters include 54VDC floating charge voltage and 63VDC overcharge protection.

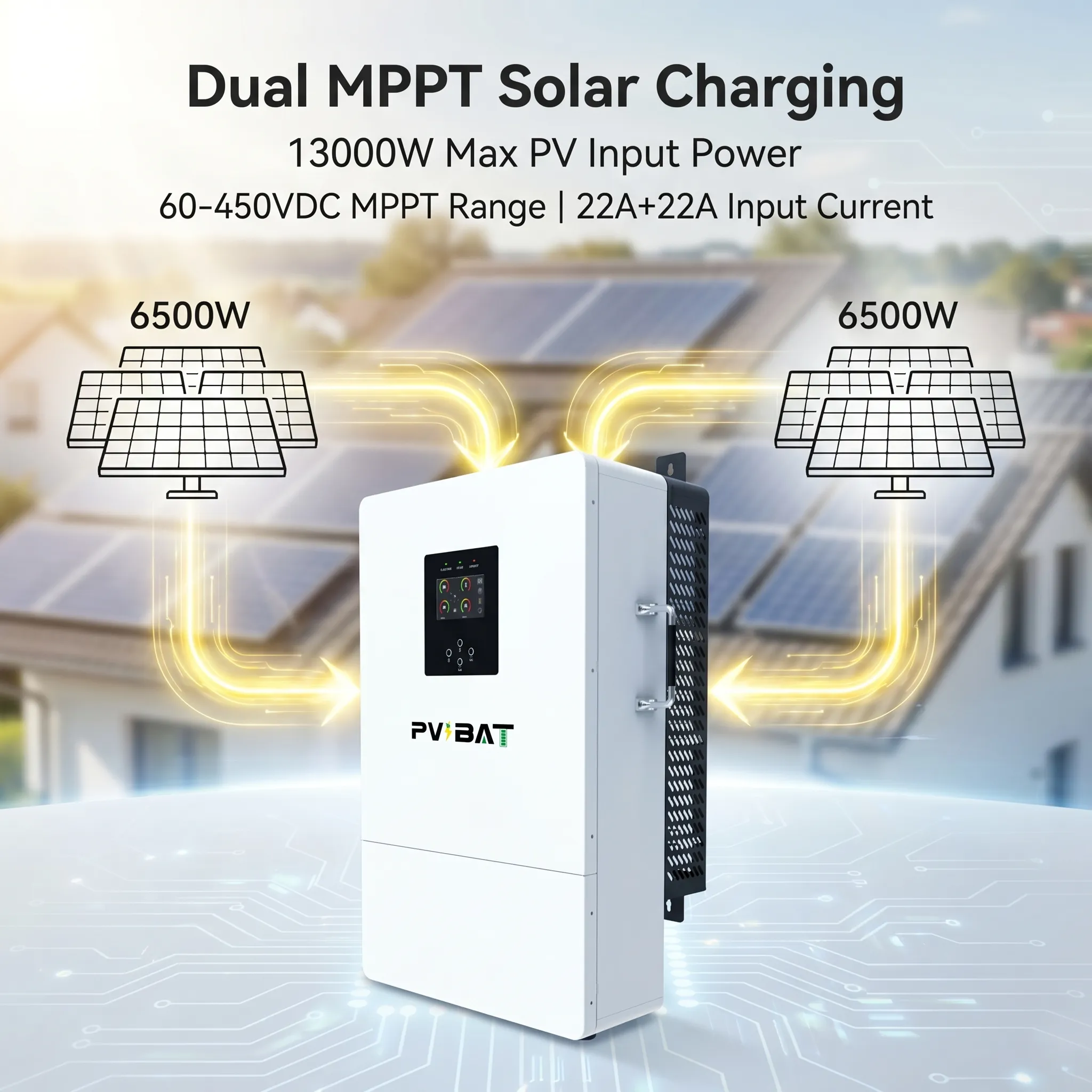

- Dual MPPT solar charging with 6500W × 2 maximum PV array power and 500VDC maximum PV array open voltage.
- 60–450VDC MPPT voltage range, 22A + 22A maximum PV input current, and 2 MPPT trackers/strings.
- Maximum solar charge current of 200A, maximum AC charge current of 150A, and maximum charge current of 200A.
- Smart load management helps optimize energy use between solar power, battery storage, grid power, and home loads.

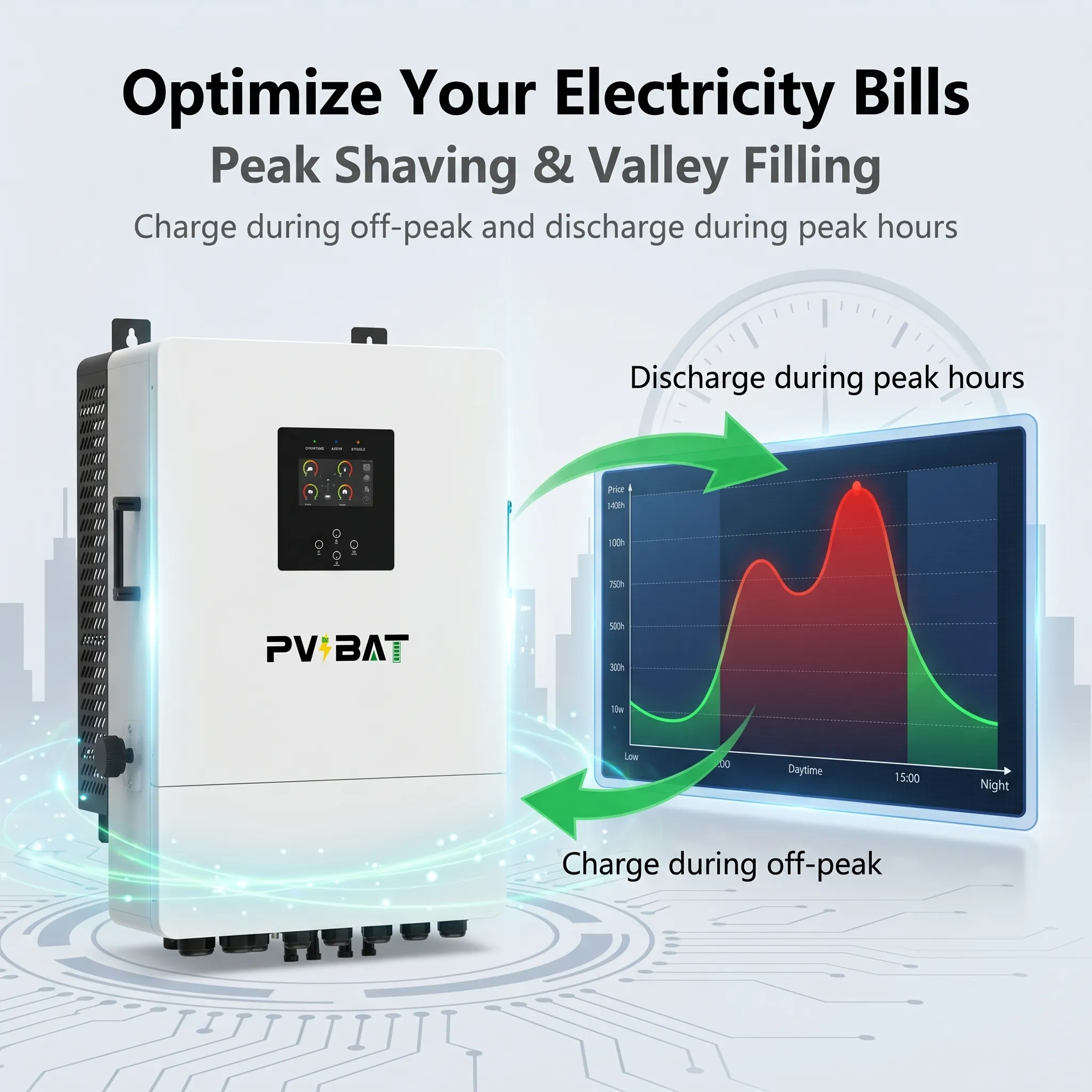

- Flexible rate tariff support allows charging during off-peak periods and discharging during peak periods.
- Remote monitoring by app and website, with standard RS232, USB, CAN and RS485 communication plus optional WiFi.

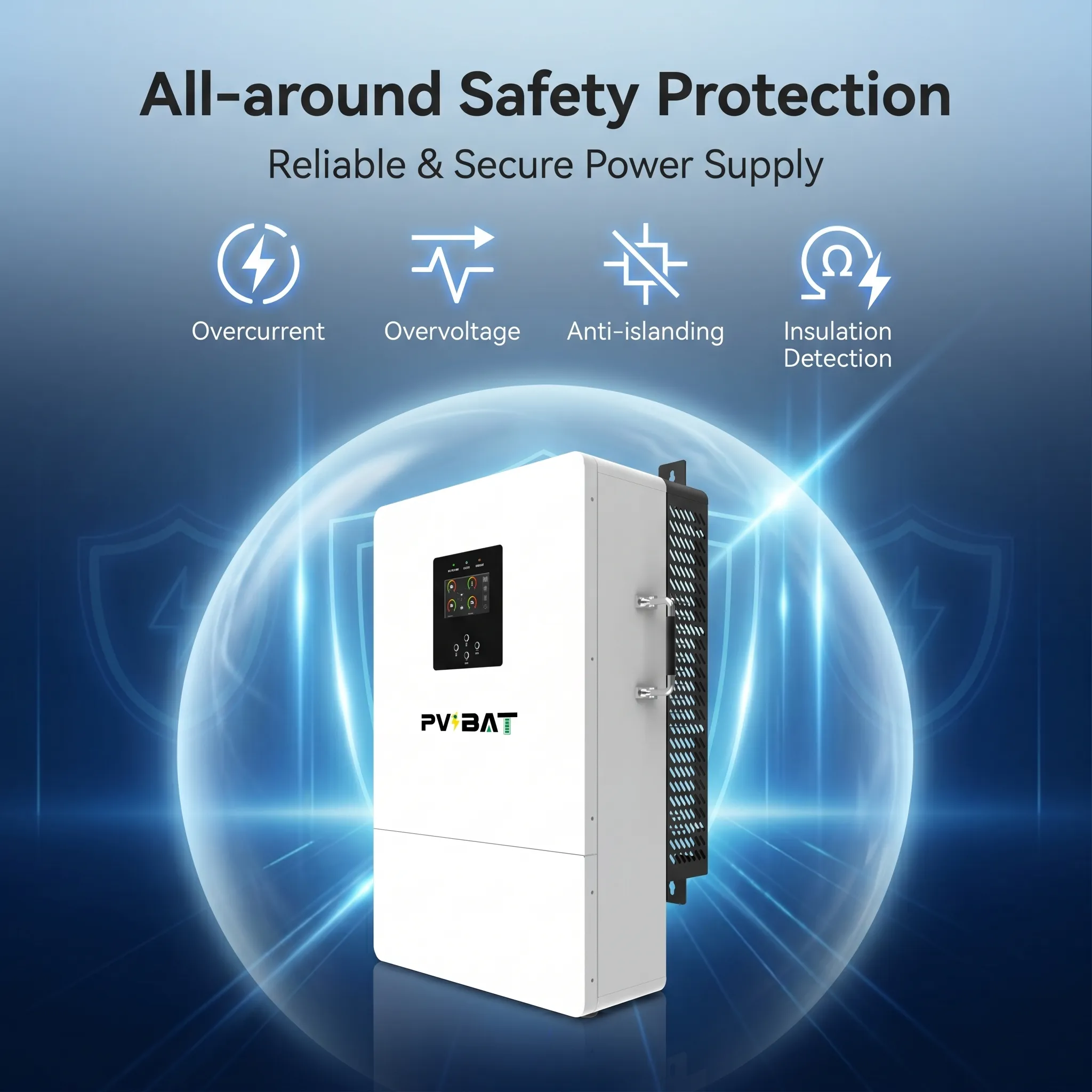

- Comprehensive protection includes AC overcurrent, AC overvoltage, over-temperature, earth leakage current monitoring, anti-islanding, and insulation detection.

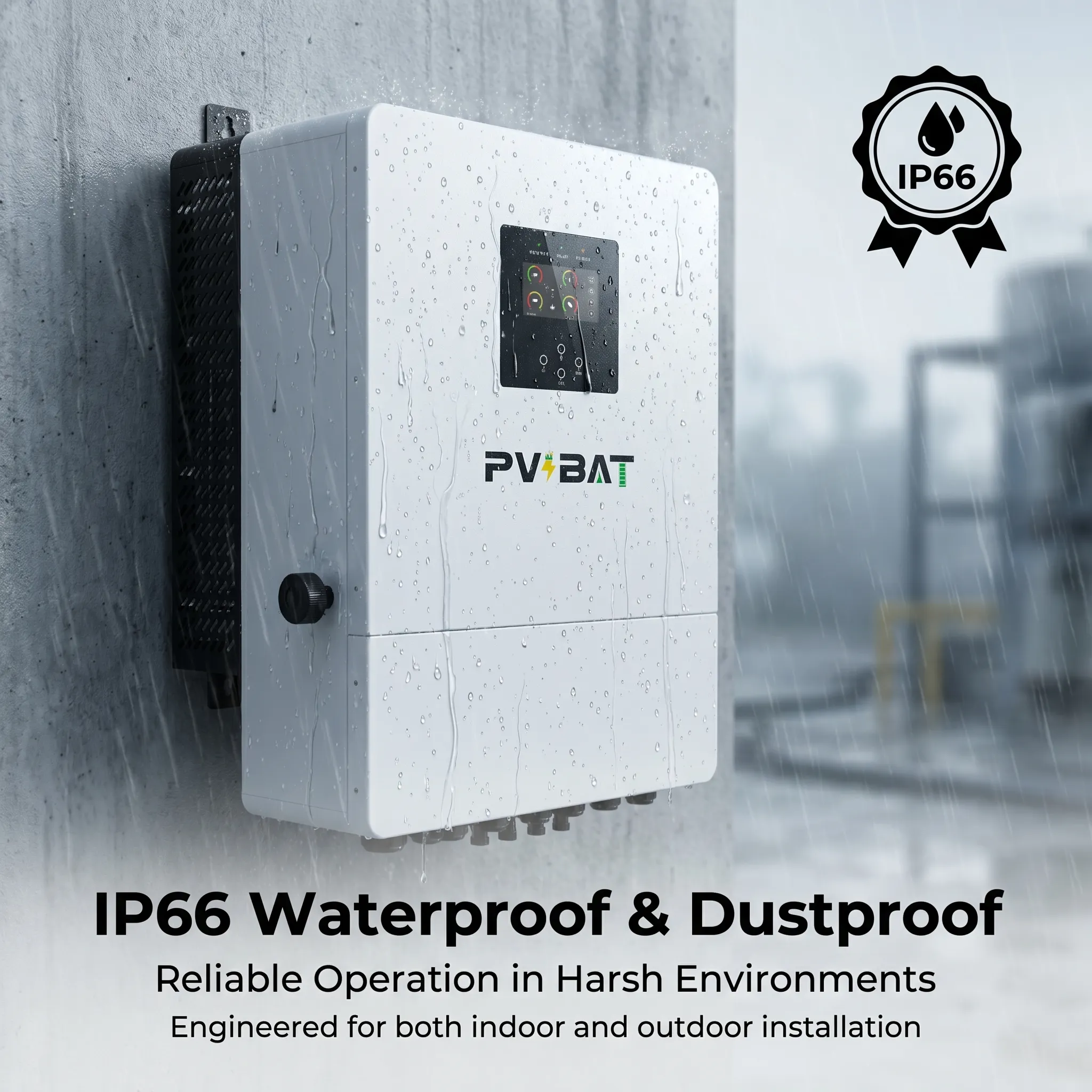

- IP66-rated enclosure supports reliable operation in demanding installation environments.

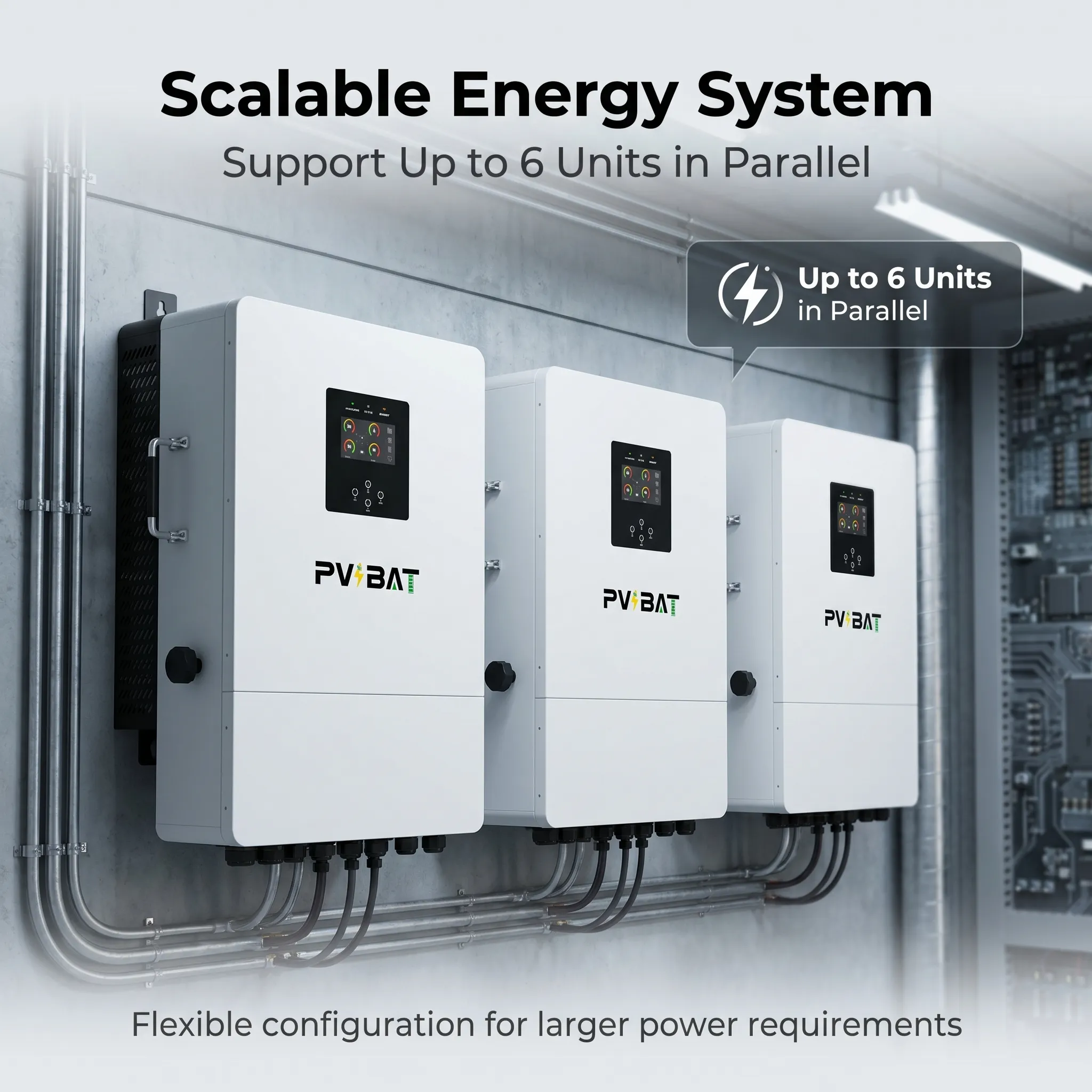

- Optional parallel function supports up to 6 units for larger residential solar energy storage configurations.
| Product Model | PVBAT L2P G2 IP66 12kW Split Phase Hybrid Inverter |
|---|---|
| Rated Power | 12000VA / 12000W |
| Application | Hybrid on-grid and off-grid energy storage inverter |
| Phase Type | Split phase |
| AC Input Voltage | 120/240Vac, L1/L2/N/PE split phase |
| AC Input Voltage Range | 90–140 VAC |
| AC Input Frequency Range | 50/60Hz, auto sensing |
| Surge Power | 24000VA |
| AC Output Voltage Regulation, Battery Mode | 120/240Vac, L1/L2/N/PE split phase, ±5% |
| Rated Output Frequency | 50/60Hz |
| Peak Efficiency | 93% |
| Transfer Time | 10ms for personal computers; 20ms for home appliances |
| Output Voltage Range, L-N | 100–120Vac, 120Vac default |
| Output Voltage Range, L-L | 200–240Vac, 240Vac default |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| Battery Type | Lithium / Lead-acid |
| Maximum Solar Charge Current | 200A |
| Maximum AC Charge Current | 150A |
| Maximum Charge Current | 200A |
| Maximum PV Array Open Voltage | 500VDC |
| Maximum PV Array Power | 6500W × 2 |
| MPPT Voltage Range | 60–450VDC |
| Maximum PV Input Current | 22A + 22A |
| MPPT Tracker / Strings | 2 |
| AC Overcurrent Protection | Yes |
| AC Overvoltage Protection | Yes |
| Over-Temperature Protection | Yes |
| Smart Load Management | Yes |
| Parallel Function | Yes, optional, up to 6 units |
| Operating Temperature | -10°C to 50°C |
| Relative Humidity | 5%–95%, non-condensing |
| Altitude | 2000m derating |
| Degree of Protection | IP66 |
| Dimensions, W × D × H | 440 × 260 × 270 mm |
| Net Weight | 42 kg |
| Communication Interface | Standard: RS232, USB, CAN & RS485; Optional: WiFi |
| Safety Standard | EN/IEC62109-1, EN/IEC62109-2 |
| Warranty | 5 years |
Download the PVBAT L2P G2 IP66 12kW Split Phase Hybrid Inverter product document for detailed specifications, application information, installation reference, safety information, and technical guidance.
Download PVBAT L2P G2 IP66 12kW Inverter Document
