SB175 Anderson-Style Connector Battery Parallel Cable 175A 600V 4AWG Tinned Copper Power Cable
The SB175 Anderson-style connector battery parallel cable is a heavy-duty 175A power cable series designed for high-current battery interconnection, extension, adapter, and parallel wiring applications. It supports reliable DC power transfer in battery banks, solar energy storage systems, inverters, RV power systems, forklifts, portable power stations, backup power equipment, and industrial DC power distribution systems.

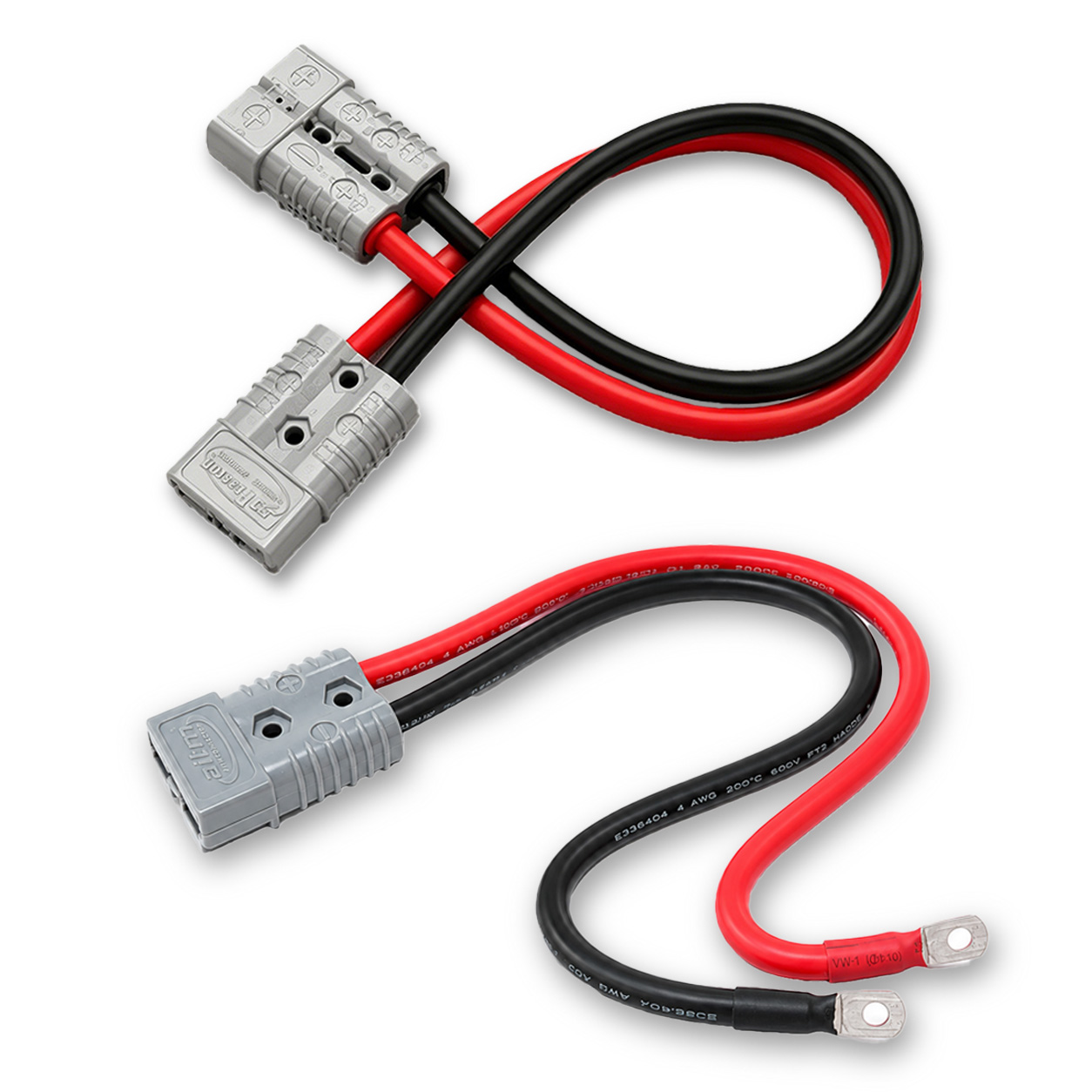

Two model configurations are available. Model 175A-L2 is a male-to-male SB175-to-SB175 power cable with dual-end SB175-style connectors, 2 connector housings, and a 2.79 ft (0.85 m) total cable length. Model 175A-L3 uses one SB175-style connector on one end and O-type crimp cable lugs on the opposite end, with 1 connector housing and a 3.94 ft (1.2 m) total cable length.
Both models are rated for 175A continuous current and 600V AC/DC. The cable uses 4AWG tinned copper conductors for low-resistance power transmission and improved corrosion resistance, while high-temperature silicone rubber insulation supports flexibility and durability across the specified -20°C to 105°C operating temperature range.
The SB175-compatible 2-pin connector housing is flame-retardant to UL94 V-0. Mechanical performance is specified with an insertion force of <=55N and a contact retention force of >=250N, helping maintain secure mating and stable electrical contact in high-current power connection applications.
Red and black cable polarity colors identify positive (+) and negative (-) leads to reduce installation errors. Select 175A-L2 for SB175-to-SB175 extension or adapter connections, or select 175A-L3 for SB175-to-terminal post, busbar, inverter terminal, terminal block, or stud-mounted power point connections.
- 175A continuous current rating supports high-current power transfer for battery, inverter, charger, and DC distribution applications.

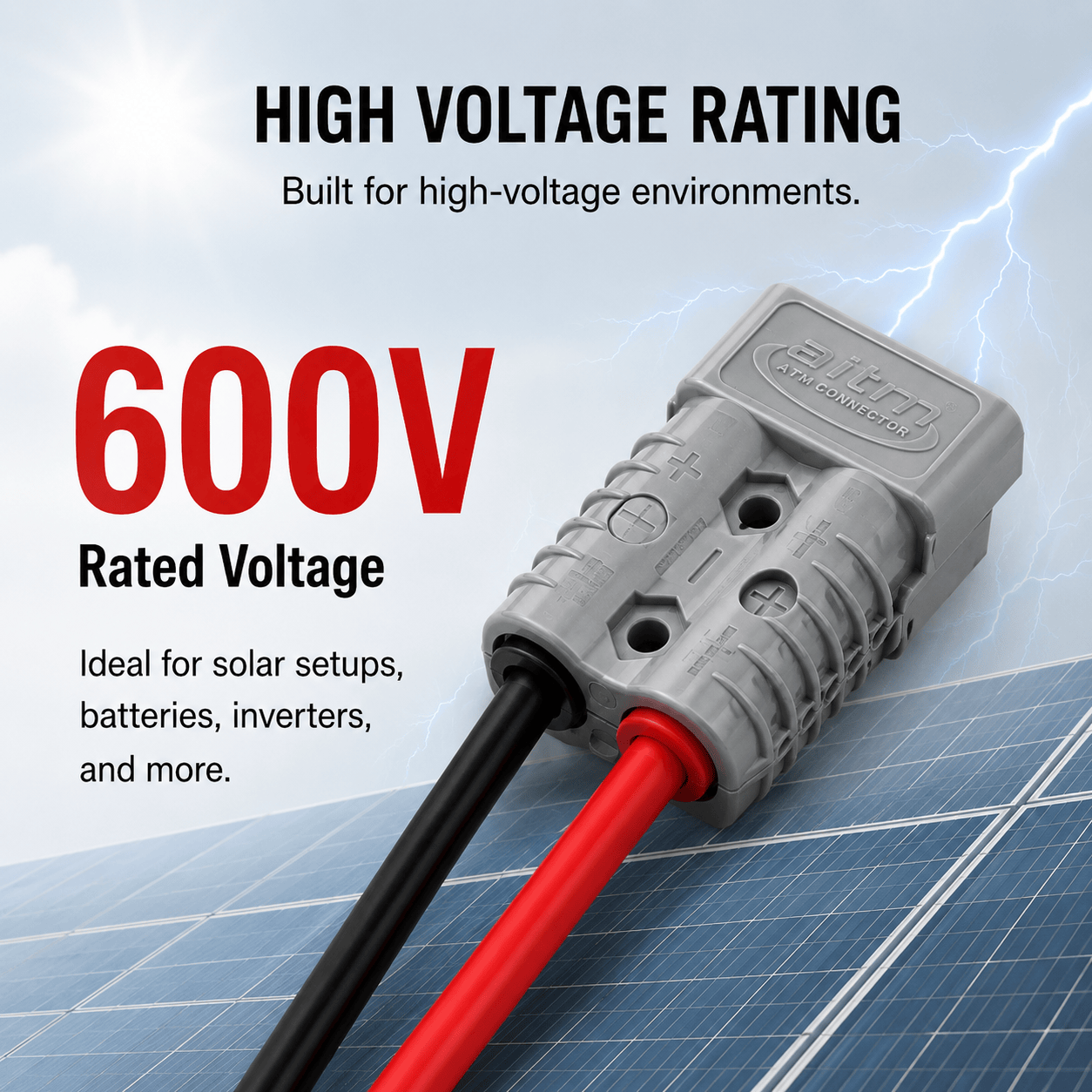

- 600V AC/DC voltage rating provides robust voltage capability for energy storage and industrial power connections.
- 4AWG tinned copper conductors provide low-resistance conductivity and improved oxidation and corrosion resistance.
- SB175-compatible 2-pin connector design supports secure, quick-connect power transfer with Anderson SB-style interfaces.
- High-temperature silicone rubber insulation provides flexible and durable cable protection from -20°C to 105°C.

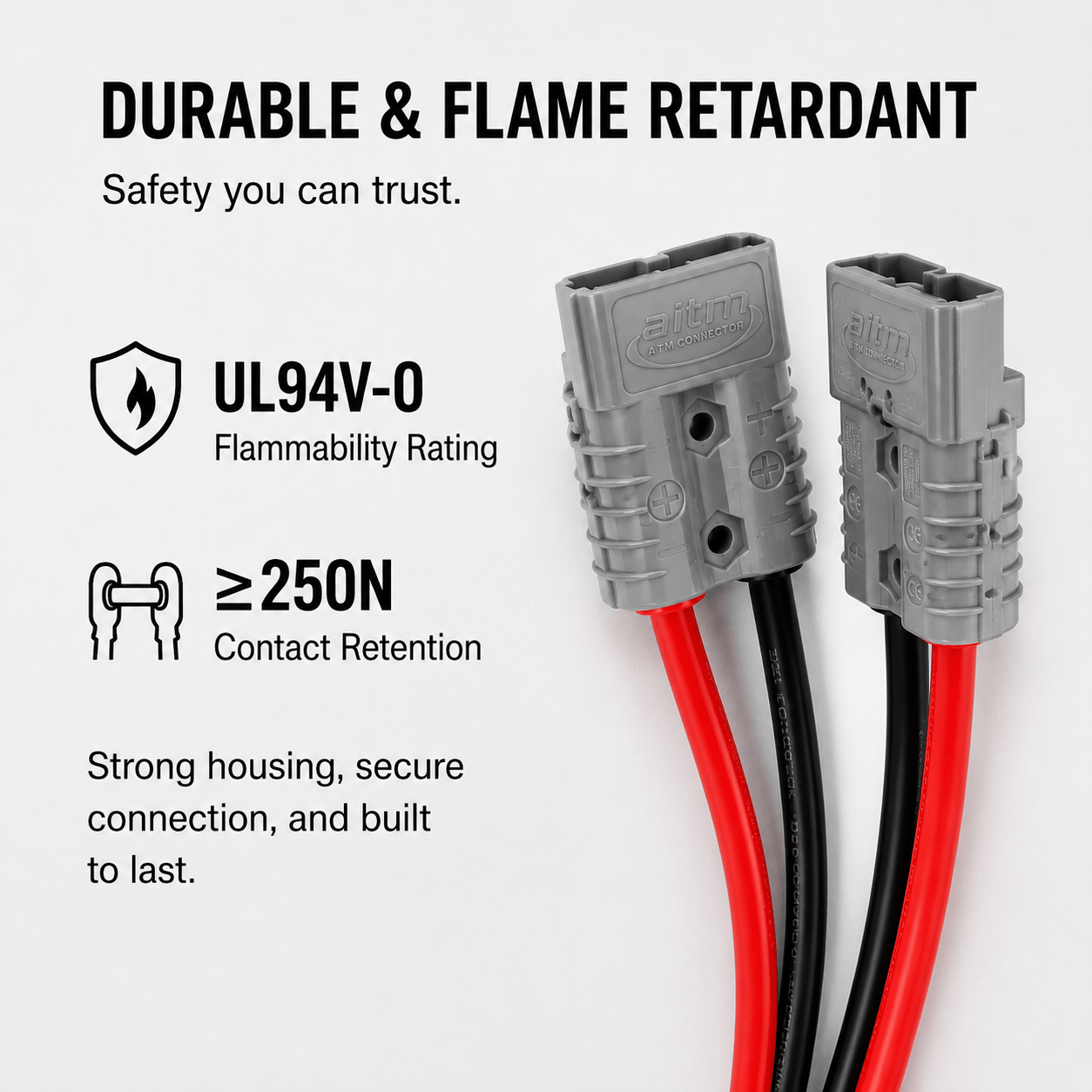

- UL94 V-0 flame-retardant connector housing supports safer use in electrical connection applications.
- Insertion force of <=55N and contact retention force of >=250N help provide stable mating and reliable contact retention.
- Red positive (+) and black negative (-) cable polarity colors help reduce wiring and installation errors.
- 175A-L2 model provides male-to-male dual-end SB175 connectors with 2 connector housings and 2.79 ft (0.85 m) total cable length.
- 175A-L3 model provides one SB175 connector and opposite-end O-type crimp cable lugs with 1 connector housing and 3.94 ft (1.2 m) total cable length.
- Suitable for battery parallel connection, battery bank interconnection, LiFePO4 battery packs, home energy storage batteries, and backup power systems.

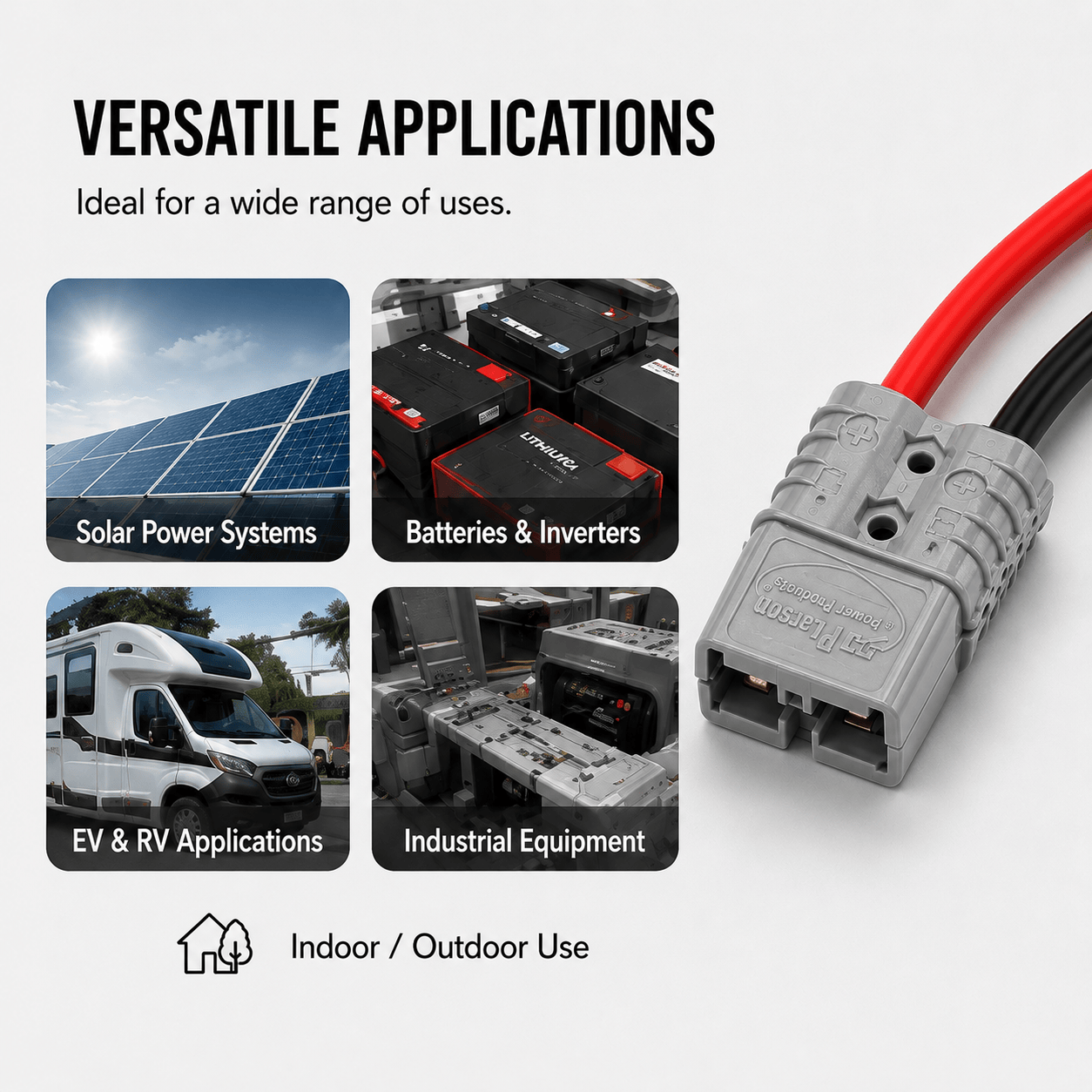

- Applicable to solar energy storage systems, off-grid power systems, power inverters, battery chargers, UPS systems, RVs, marine systems, forklifts, and electric carts.
- 175A-L2 supports SB175-to-SB175 extension or adapter connections for compatible power interfaces.
- 175A-L3 supports SB175-to-terminal-post, busbar, terminal block, inverter terminal, or stud-mounted power point connections.
| Parameter | 175A-L2 | 175A-L3 |
|---|---|---|
| Connector Type | SB175 style connector (compatible with Anderson) | SB175 style connector (compatible with Anderson) |
| Model | 175A-L2 | 175A-L3 |
| Connector Configuration | Male to Male - dual-end SB175 connectors | One end SB175 connector; opposite end O-type crimp cable lugs |
| Quantity of Connector Housing | 2 pieces | 1 pc |
| Number of Pins | 2 pins | 2 pins |
| Rated Current | 175A continuous | 175A continuous |
| Rated Voltage | 600V AC/DC | 600V AC/DC |
| Operating Temperature Range | -20°C to 105°C | -20°C to 105°C |
| Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insertion Force | <=55N | <=55N |
| Contact Retention Force | >=250N | >=250N |
| Total Cable Length | 2.79 ft (0.85 m) | 3.94 ft (1.2 m) |
| Wire Gauge | 4AWG | 4AWG |
| Conductor Material | Tinned copper | Tinned copper |
| Cable Insulation Material | High-temperature silicone rubber | High-temperature silicone rubber |
| Cable Polarity Color | Red (+), Black (-) | Red (+), Black (-) |
| Certification | UL Recognized Component | UL Recognized |
Download the SB175 Anderson-style battery parallel cable user manual for product specifications, model selection, installation guidance, compatibility notes, and technical reference for 175A-L2 and 175A-L3 cable assemblies.
Download SB175 Battery Parallel Cable User Manual
