PVBAT 1004.8Wh Portable Power Station

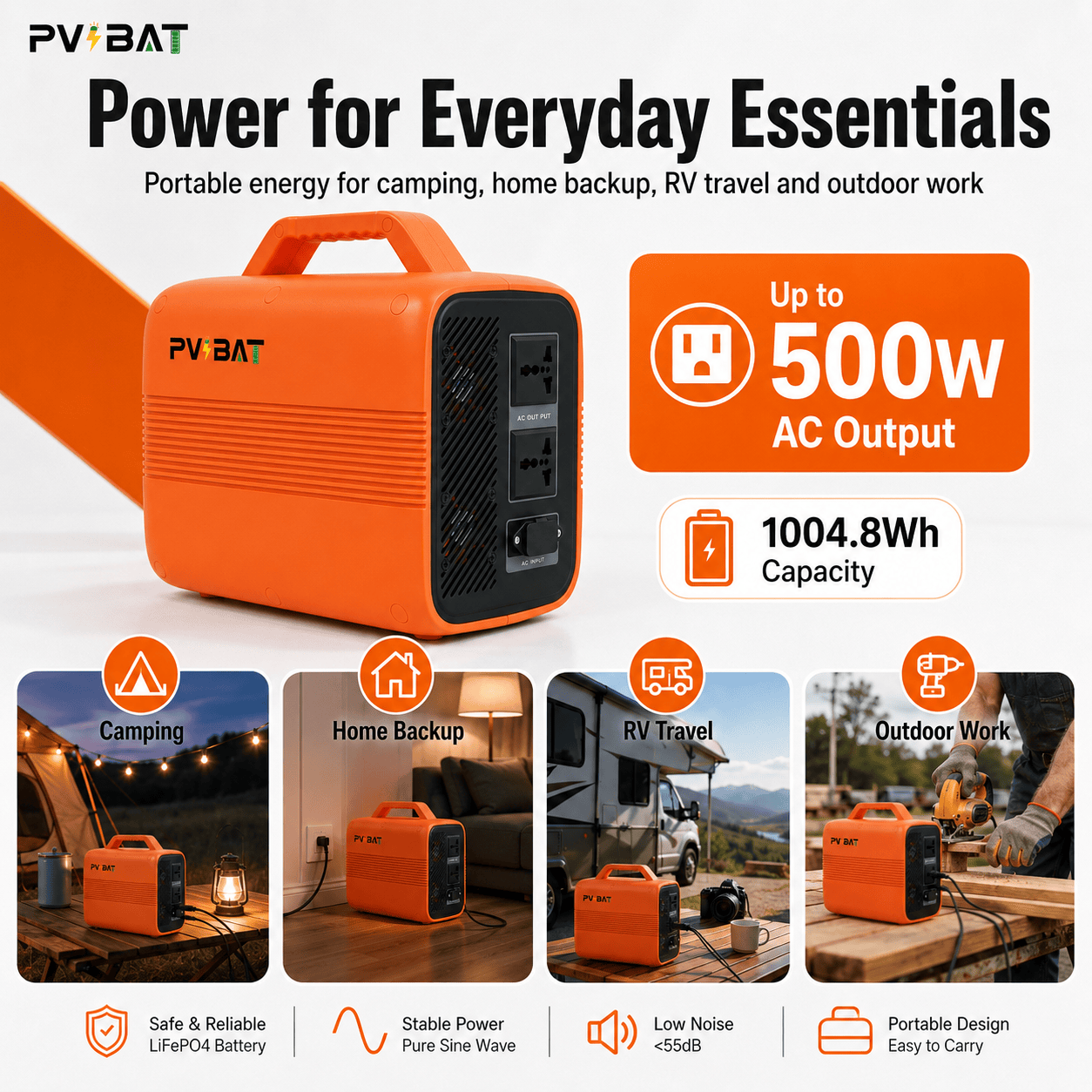

The PVBAT 1004.8Wh Portable Power Station is a compact all-in-one portable energy storage system designed for home backup power, camping, RV travel, outdoor work, emergency preparedness, remote locations, and off-grid power applications.
With a 1004.8Wh high-capacity LiFePO4 battery, it provides reliable portable power for daily electronics and essential devices. The advanced LiFePO4 battery offers higher thermal stability, longer cycle life, improved safety, and better durability than traditional lithium batteries.
The built-in 500W pure sine wave AC inverter delivers stable and clean electricity for sensitive electronics such as laptops, TVs, WiFi routers, CPAP machines, mini refrigerators, fans, cameras, and small power tools. Pure sine wave output helps protect devices and maintain stable performance.
The power station supports 11-55V solar panel input up to 300W, allowing users to recharge with solar energy for greater off-grid independence. It also supports simultaneous AC and solar charging, helping improve charging flexibility, reduce downtime, and make better use of available solar power.
A built-in UPS function automatically switches to battery power within 20ms during grid power interruptions, helping keep essential devices such as WiFi routers, computers, refrigerators, security systems, and communication devices running continuously.
The compact body, integrated carrying handle, smart real-time display, and built-in safety protection system make it easy to transport, monitor, and use safely in a wide range of indoor and outdoor scenarios.
- 1004.8Wh high-capacity portable power for home backup, camping, RV travel, and emergency use.
- 500W pure sine wave AC output for stable and clean electricity for sensitive electronics.

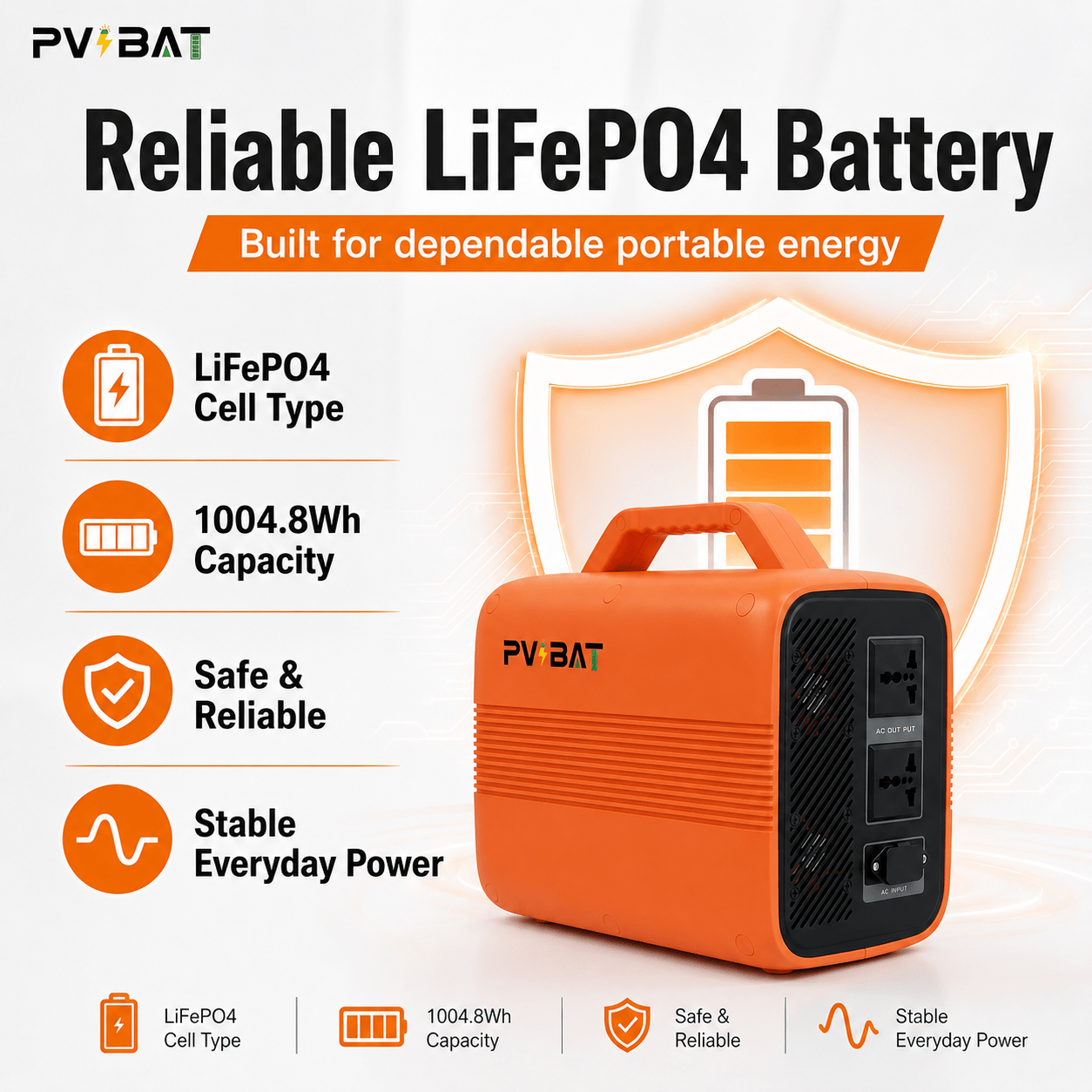

- Safe and long-life LiFePO4 battery cells with improved thermal stability and durability.
- Multiple output ports, including AC, USB, Type-C fast charging, and 12V DC output.
- Supports 11-55V solar panel input up to 300W for off-grid solar charging.
- Supports AC and solar simultaneous charging for faster recharging and reduced downtime.
- 20ms UPS backup function to help keep essential devices running during power interruptions.
- Compact portable design with integrated carrying handle, 310 × 158 × 220mm size, and approx. 9kg weight.
- Smart real-time display for battery level, input power, output power, charging status, and system alerts.
- Built-in safety protection against overcharging, over-discharging, over-current, short circuits, and overheating.
| Model | 500W |
|---|---|
| Capacity | 1004.8Wh |
| Net Weight | 8.5±0.5kg（25lbs） |
| Dimensions | 310x158x220mm / 12.20 × 5.91 × 8.66 in |
| Output | |
| AC Output | 110Vac, 50Hz, 500W |
| AC Output（Bypass Mode） | 500W Max |
| Input | |
| AC Input | Voltage: 90-130Vac Frequency: 45-65Hz |
| PV Input | 11-55 Vdc, 500W |
| Battery | |
| Cell Type | LiFePO4 |
| Working Environment | |
| Operating Noise | <55dB |
| Operating Temperature | -10°C to 45°C（10°F to 113°F） |
| Storage Temperature | -20°C to 65°C（-4°F to 149°F） |
Tip: The table can scroll horizontally on mobile devices.
Download User Manual
Download the PVBAT 1kWh User Manual PDF for product operation, installation guidance, safety instructions, and daily use reference.
