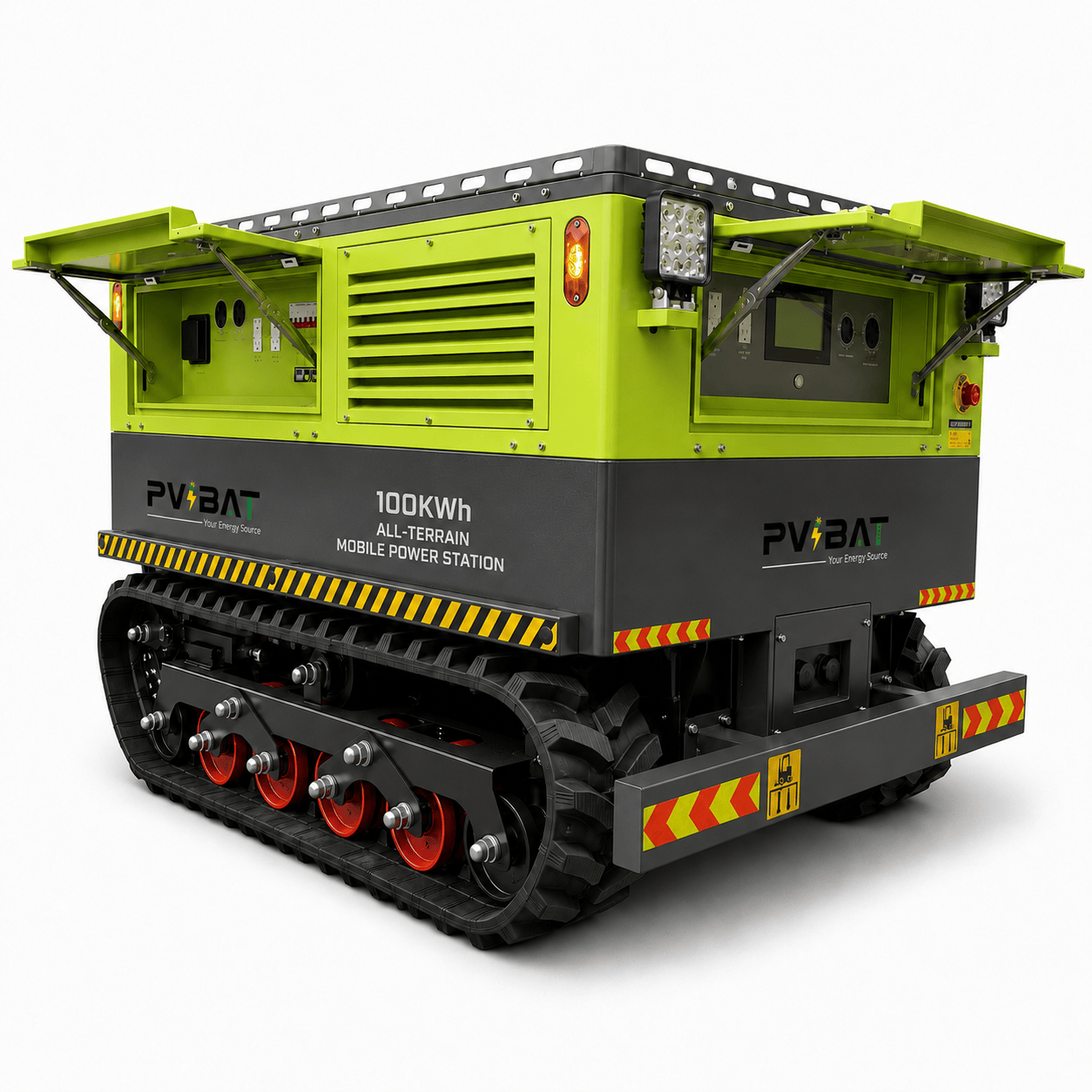

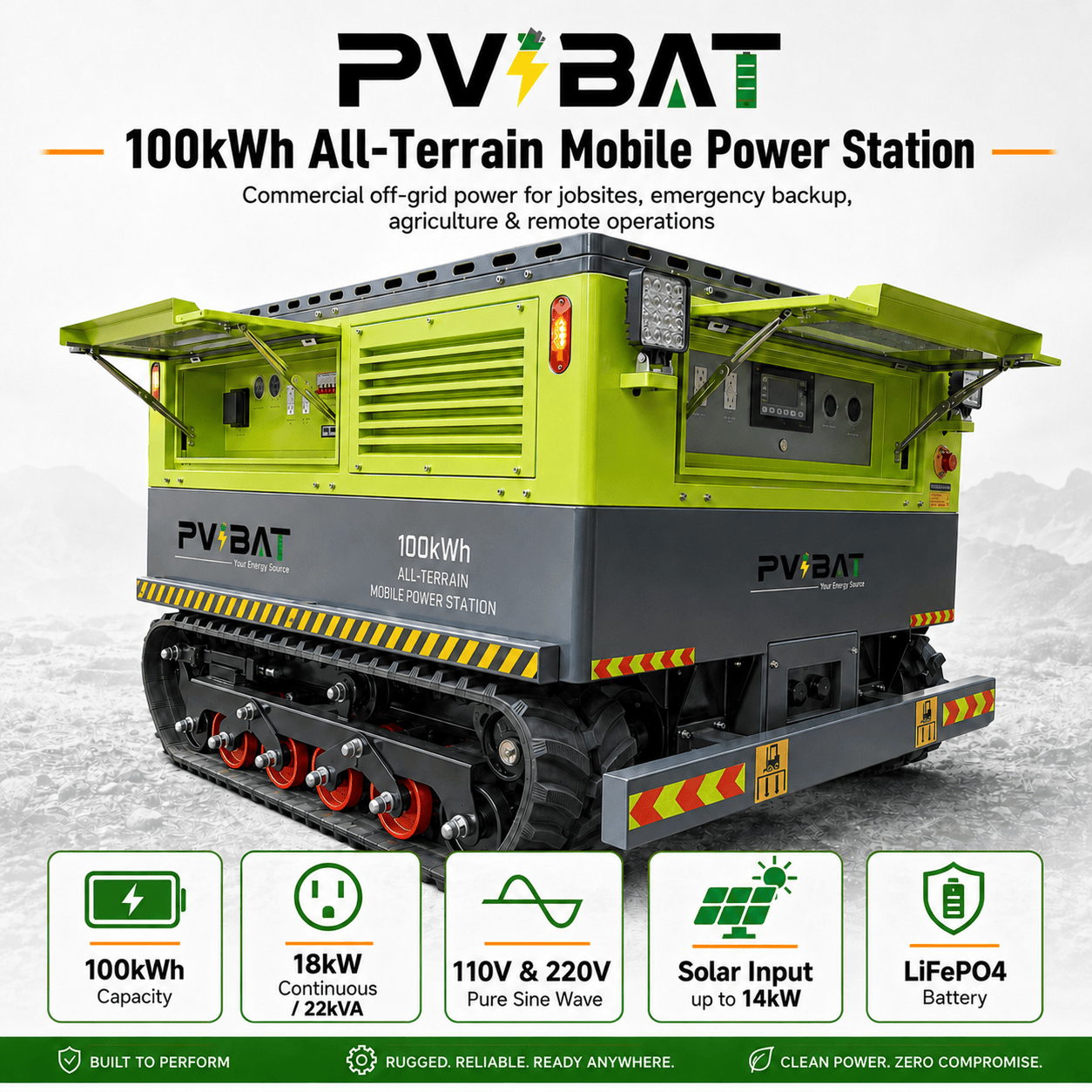

MSP-100 100kWh All-Terrain Mobile Power Station
MSP-100 is a high-capacity all-terrain mobile energy storage power station designed for outdoor operations, industrial worksites, emergency backup power, farms, warehouses, off-grid applications, and mobile energy support. It integrates a 100kWh LiFePO4 battery system, 20kVA / 18kW continuous power output, solar charging input, AC charging, and a rugged tracked mobile platform.
With 110V / 220V pure sine wave AC output, MSP-100 can support a wide range of tools, equipment, lighting, communication systems, industrial loads, and temporary power applications. Its operating voltage range is 67.2V-87.6V, with an 87.6V charging cut-off voltage and a 67.2V discharge cut-off voltage.
The unit supports 240V AC input charging. Under 240V input, charging from 10% to 95% takes approximately 9 hours. MSP-100 also supports dual solar input through 2 x BE175 PV input connectors, with a PV voltage range of 90VDC-230VDC and a maximum input current of 2 x 80A, equal to 14kW of solar input power.
As a mobile energy workstation, MSP-100 offers a towing capacity of 5,000 lb / 2,268 kg, a platform load capacity of 500 lb / 227 kg, and a maximum forward speed of 1.8km/h. On flat ground with no load, it can operate for more than 25 hours and travel approximately 80km on a single charge.
MSP-100 supports CAN bus and Bluetooth communication, with Wi-Fi / Bluetooth monitoring for convenient system status checking and daily management. It is built for users who need dependable mobile power in demanding environments.
- 100kWh high-capacity LiFePO4 (LFP) battery system for long-duration power supply.
- 22kVA / 18kW maximum continuous output for tools, equipment, and industrial loads.
- Pure sine wave output for stable and compatible AC power delivery.
- Supports 110V / 220V AC output for flexible field and worksite applications.

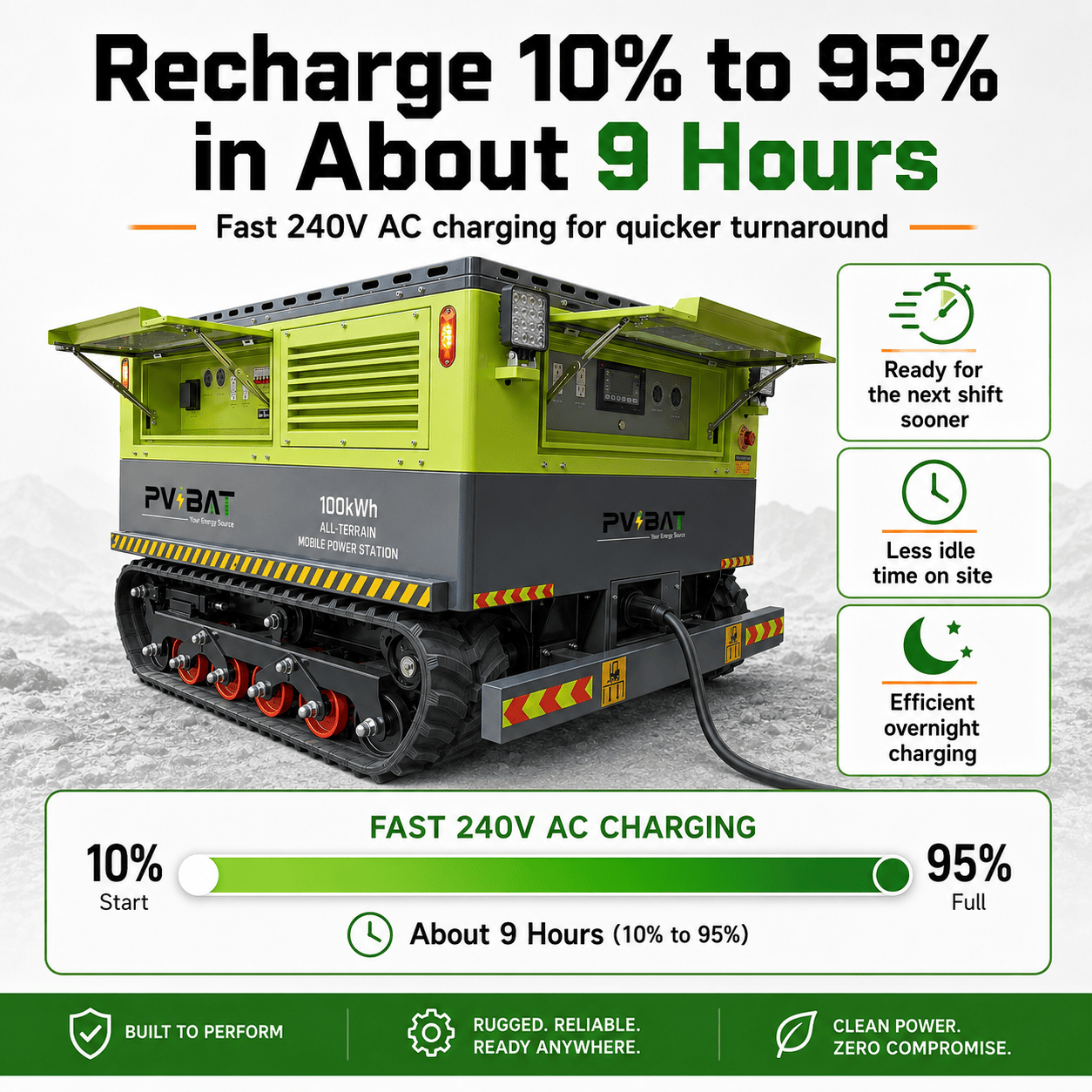

- 240V AC input charging, with 10% to 95% charging in approximately 9 hours.
- Dual solar input through 2 x BE175 connectors for off-grid and hybrid energy use.
- PV input voltage range of 90VDC-230VDC with up to 2 x 80A maximum input current.
- Maximum solar input power of 14kW for efficient renewable energy charging.

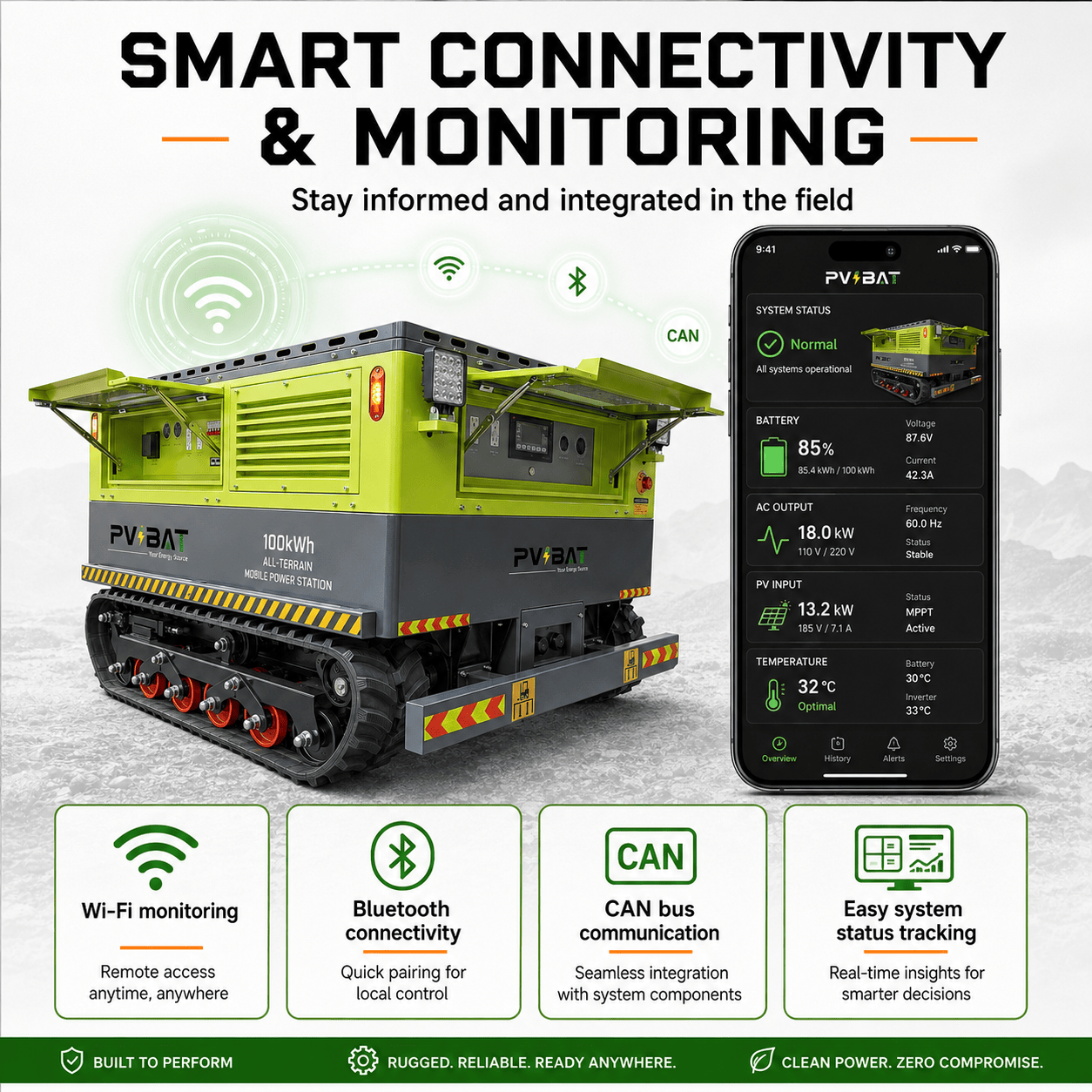

- CAN bus and Bluetooth communication for intelligent system connectivity.
- Wi-Fi / Bluetooth monitoring for convenient status checking and management.

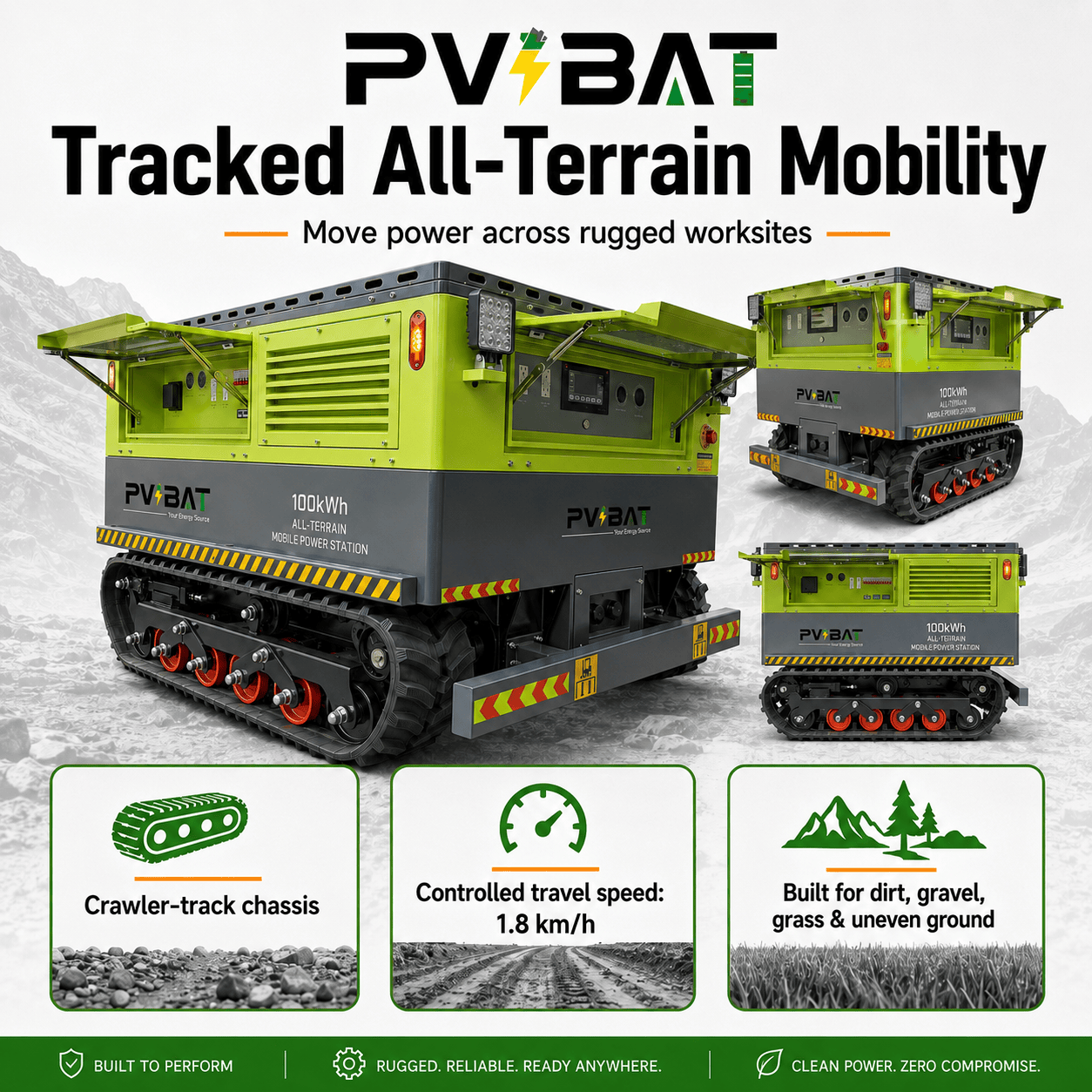

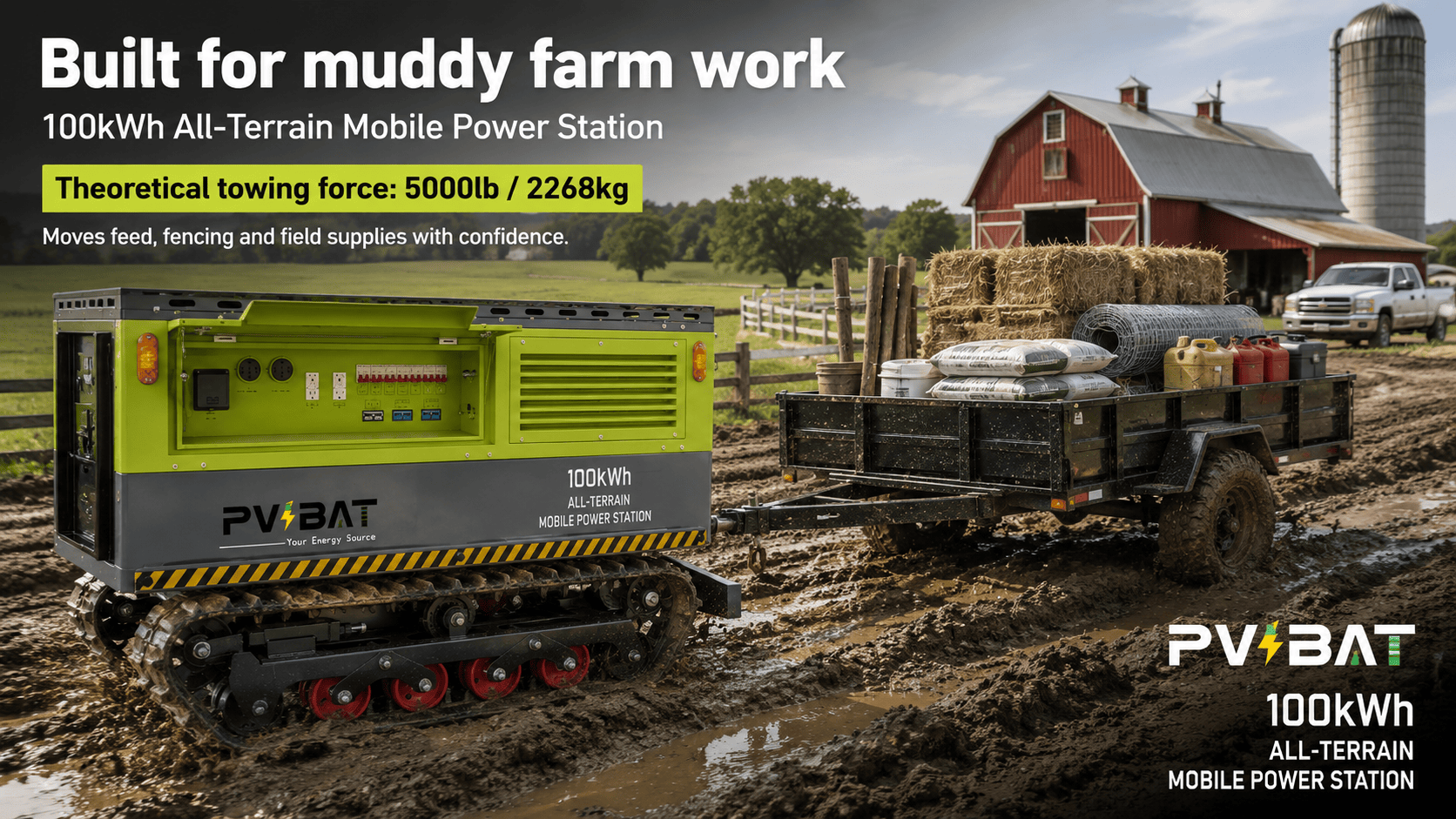

- All-terrain tracked mobility with 5,000 lb / 2,268 kg towing capacity.
- 500 lb / 227 kg platform load capacity for practical worksite support.

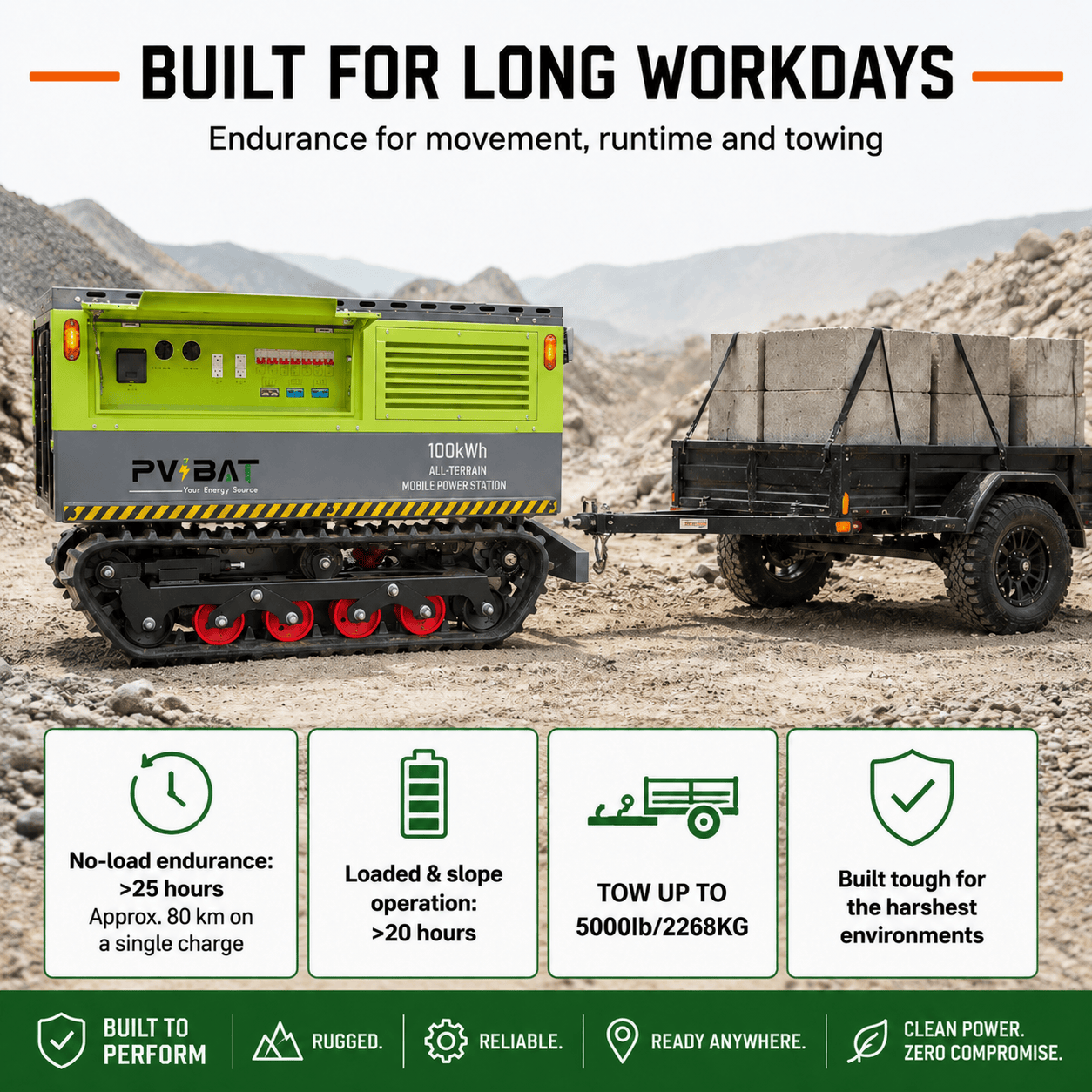

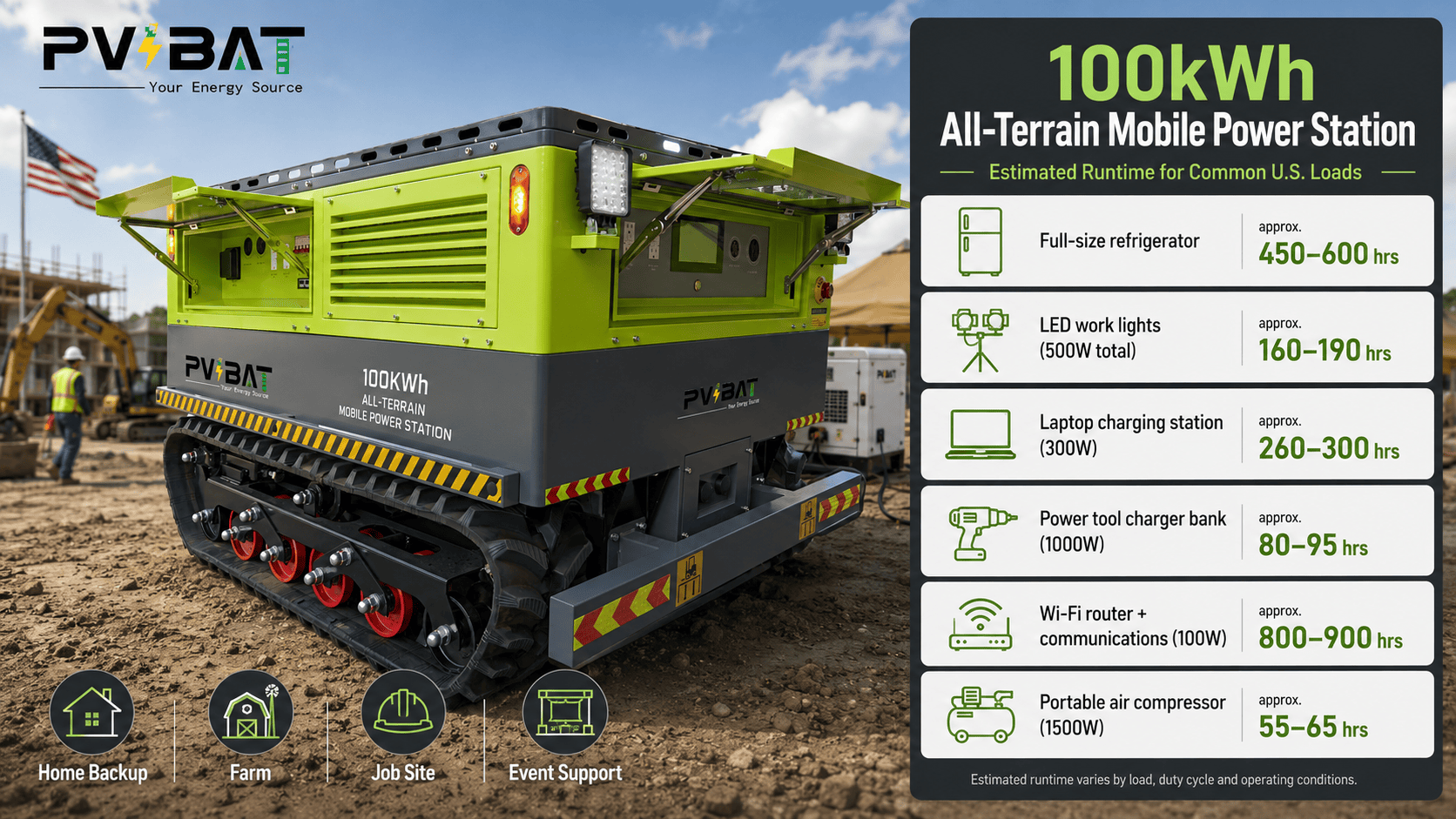

- More than 25 hours of runtime on flat ground with no load, approximately 80km per charge.
- Loaded slope operation supports towing 1.5 tons for more than 20 hours.
| Rated Energy | 100kWh |
|---|---|
| Operating Voltage Range | 67.2V-87.6V |
| Charging Cut-off Voltage | 87.6V |
| Discharge Cut-off Voltage | 67.2V |
| Maximum Continuous Power | 20kVA / 18kW |
| Waveform | Pure sine wave |
| AC Output Voltage | 110V / 220V |
| AC Charging Interface Type | 240V input |
| PV Input Connector | 2 x BE175 |
| Solar PV Input Voltage Range | 90VDC-230VDC |
| Solar PV Maximum Input Current | 2 x 80A (14kW) |
| AC Charging Time (10% to 95%) | Approx. 9 hours at 240V |
| Battery Type | LiFePO4 (LFP) |

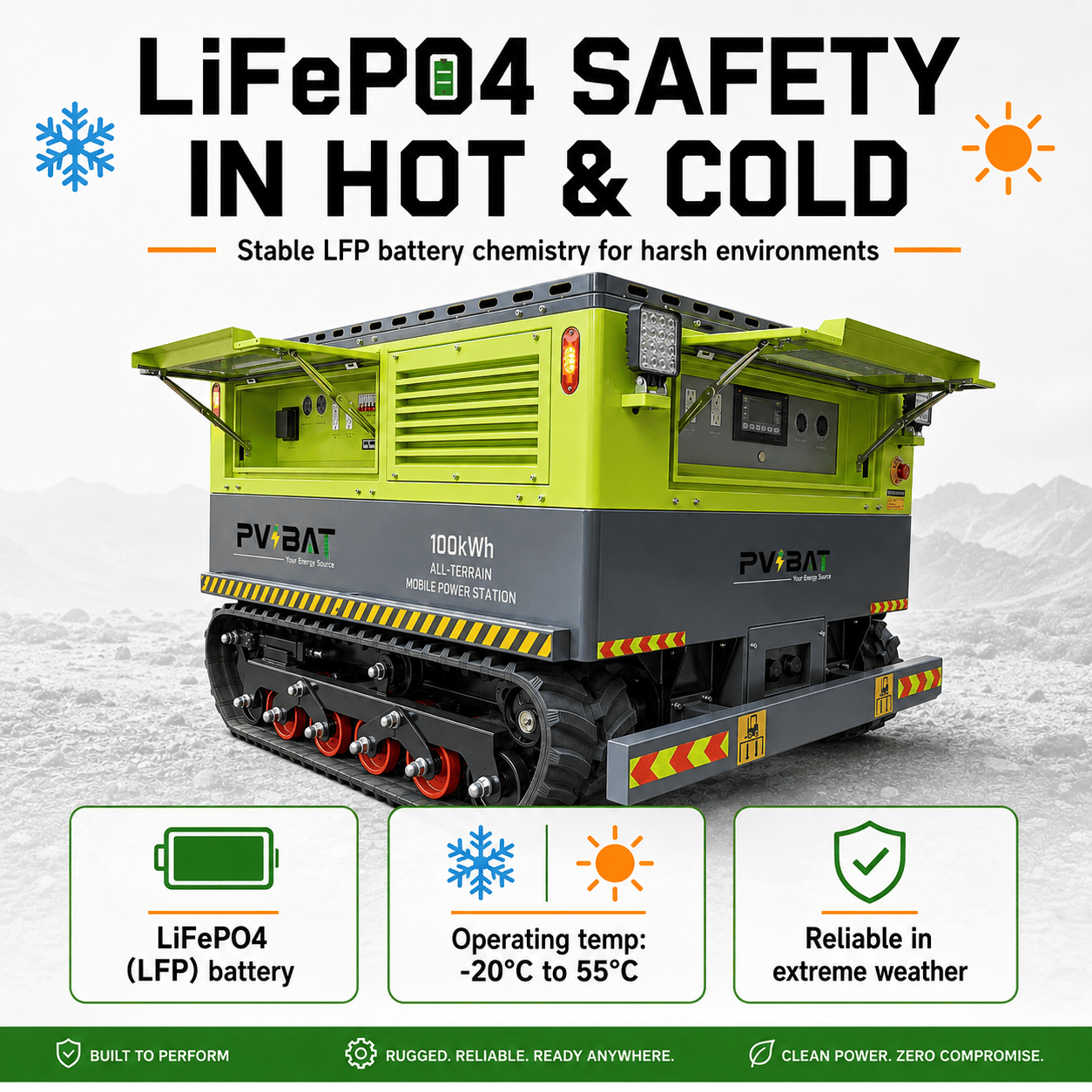

| Operating Temperature Range | Charging: -20℃ to 55℃ / Discharging: -20℃ to 55℃ |
| Communication Protocol | CAN bus, Bluetooth |
| Monitoring Method | Wi-Fi / Bluetooth |
| Battery Cell Configuration | 24S4P |
| Product Dimensions | 1100 x 1663 x 1058mm / 44 x 65.5 x 41.7in |
| Weight | 2,800 lb / 1,270 kg |
| Towing Capacity | 5,000 lb / 2,268 kg |
| Platform Load Capacity | 500 lb / 227 kg |
| Maximum Forward Speed | 1.8km/h |
| Runtime per Charge (Flat Ground, No Load) | More than 25 hours, approx. 80km |
| Runtime per Charge (Loaded, Slope) | Tows 1.5 tons for more than 20 hours |
Download the MSP-100 user manual for detailed product operation, installation guidance, safety instructions, maintenance information, and technical reference.
Download MSP-100 User Manual
