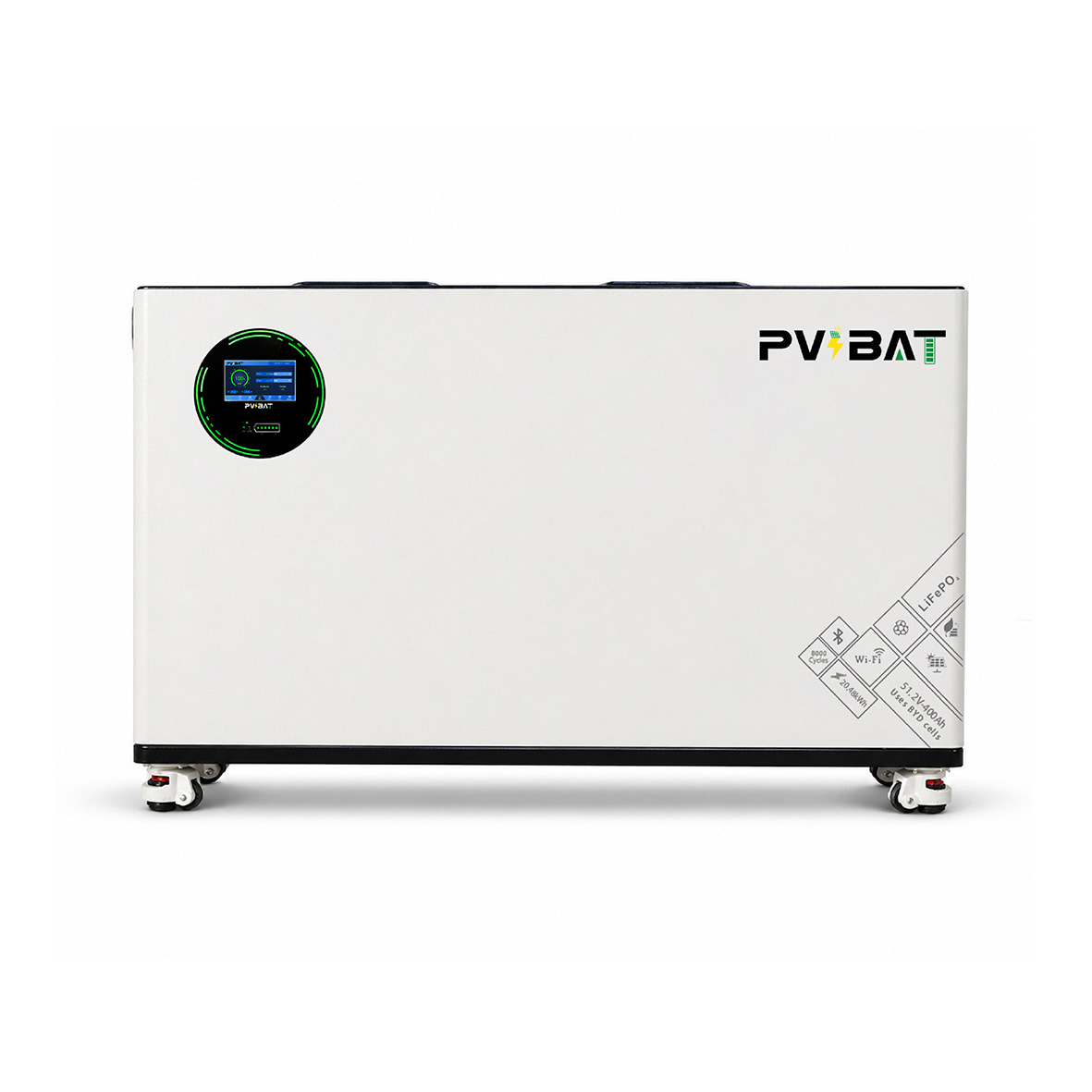

PVBAT 20.48kWh Ultra-Thin Wall-Mounted LiFePO4 Energy Storage Battery
The PVBAT BEAR-48G1 20.48kWh ultra-thin wall-mounted LiFePO4 energy storage battery is designed
for home solar energy storage, emergency backup power, and off-grid power applications. It is also
suitable for villas, farms, small shops, small factories, and other small-scale energy storage projects.

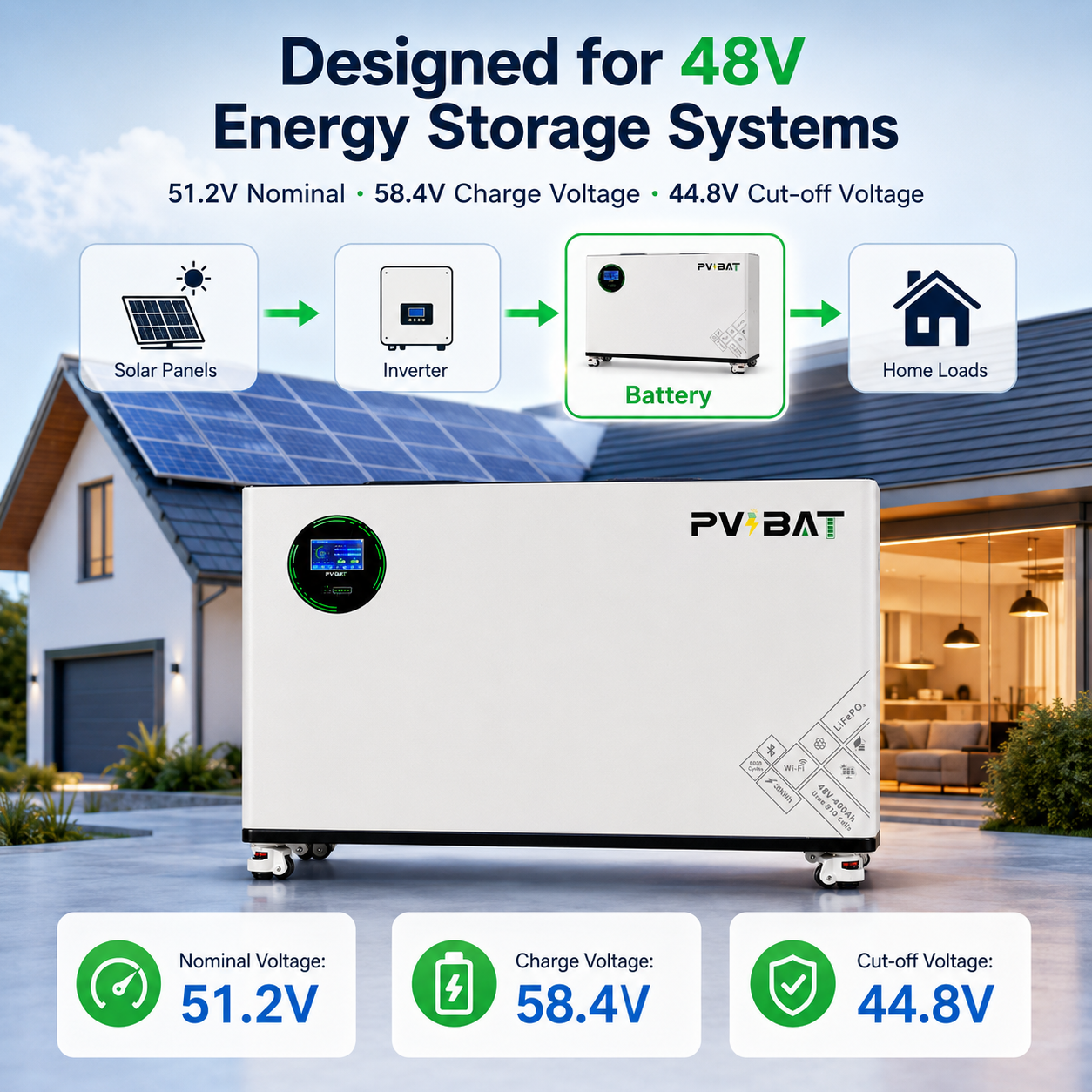

Each unit provides 20.48kWh rated energy and 400Ah rated capacity with a 51.2V rated voltage.

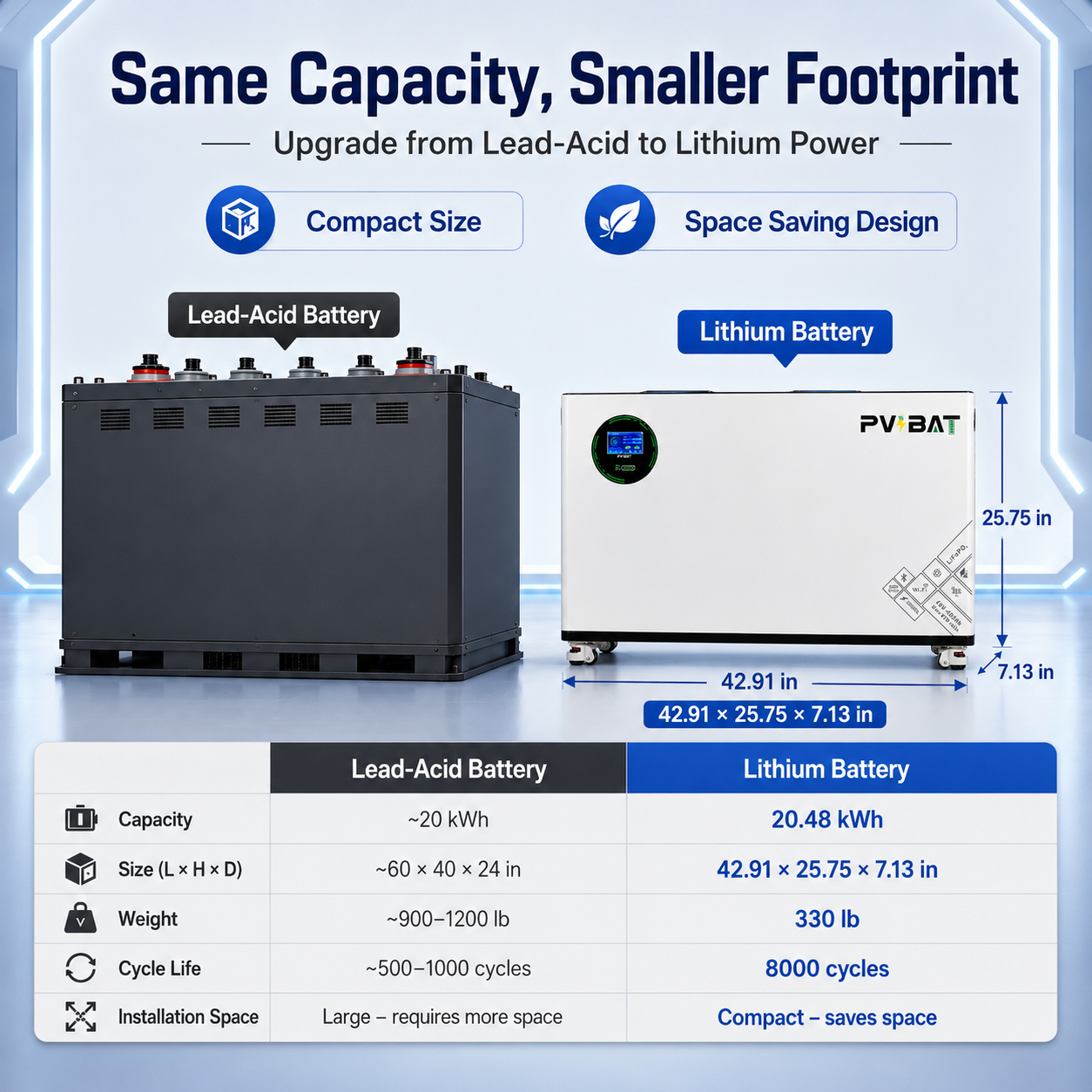

Its 1090x181x654mm ultra-thin body supports wall-mounted installation, helping save floor space
while keeping the system layout clean and modern.
BEAR-48G1 supports up to 16 batteries in parallel, allowing total system capacity to expand to
approximately 327.6kWh. This gives users flexible capacity planning for daily solar self-consumption,
outdoor off-grid power supply, and longer-duration backup power for homes and small commercial sites.
The battery uses LiFePO4 (LFP) chemistry with an 8000-cycle design at 80% depth of discharge.
It is built for stable long-term operation, reliable output, safer energy storage performance,
and practical use in residential and small commercial energy systems.
- 20.48kWh rated energy and 400Ah rated capacity for home and small commercial storage needs.
- 51.2V LiFePO4 (LFP) battery system with 16S1P battery cell configuration.
- Supports up to 16 batteries in parallel, expanding system capacity to approximately 327.6kWh.
- 8000-cycle design at 80% depth of discharge for long-term stable operation.
- 150A*2 maximum continuous discharge current per port for reliable power output.
- Supports solar energy storage, peak-valley power management, outage backup, and off-grid power supply.

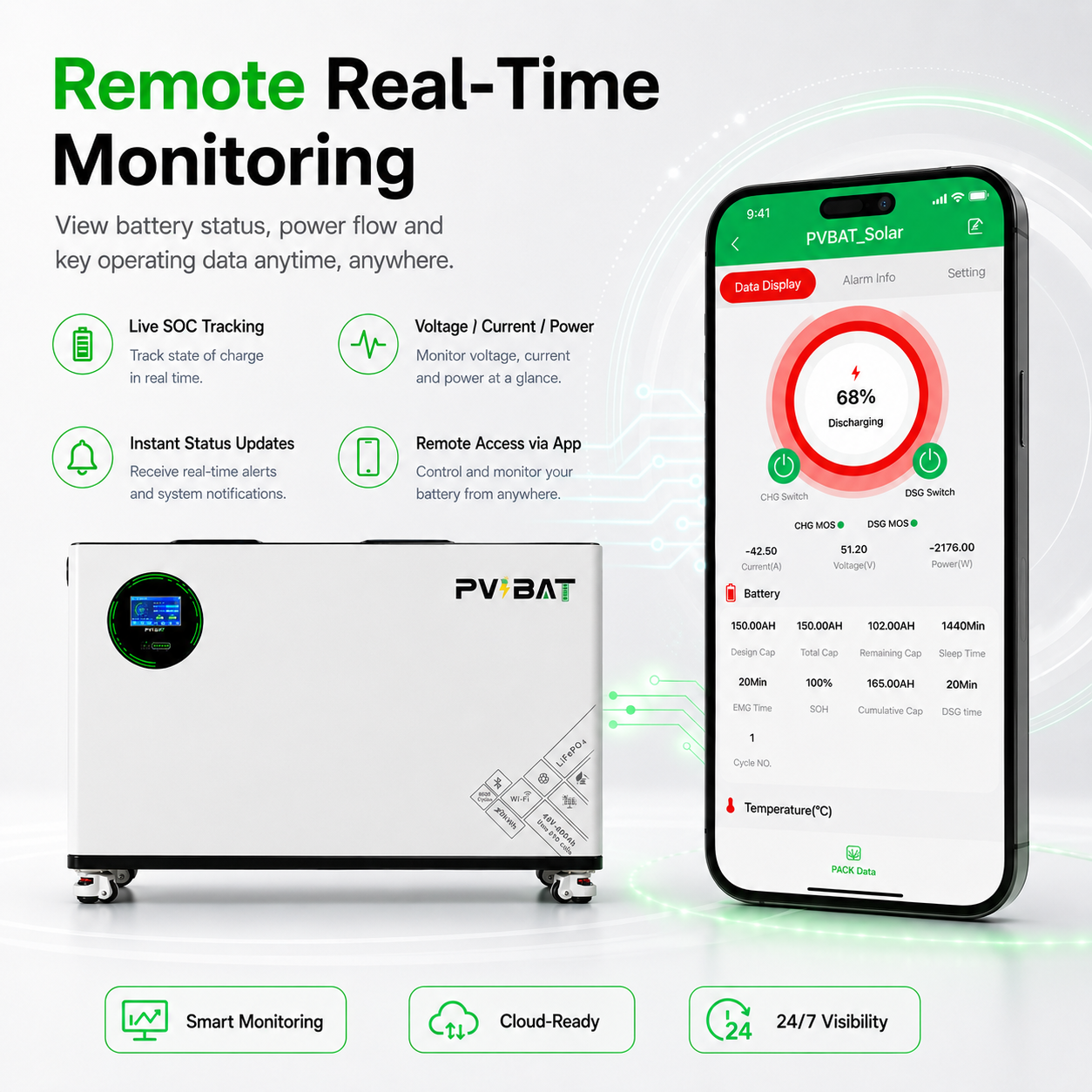

- CAN/RS485 communication with Wi-Fi / Bluetooth monitoring for system integration and visibility.
- 1090x181x654mm ultra-thin body for wall-mounted, space-saving installation.

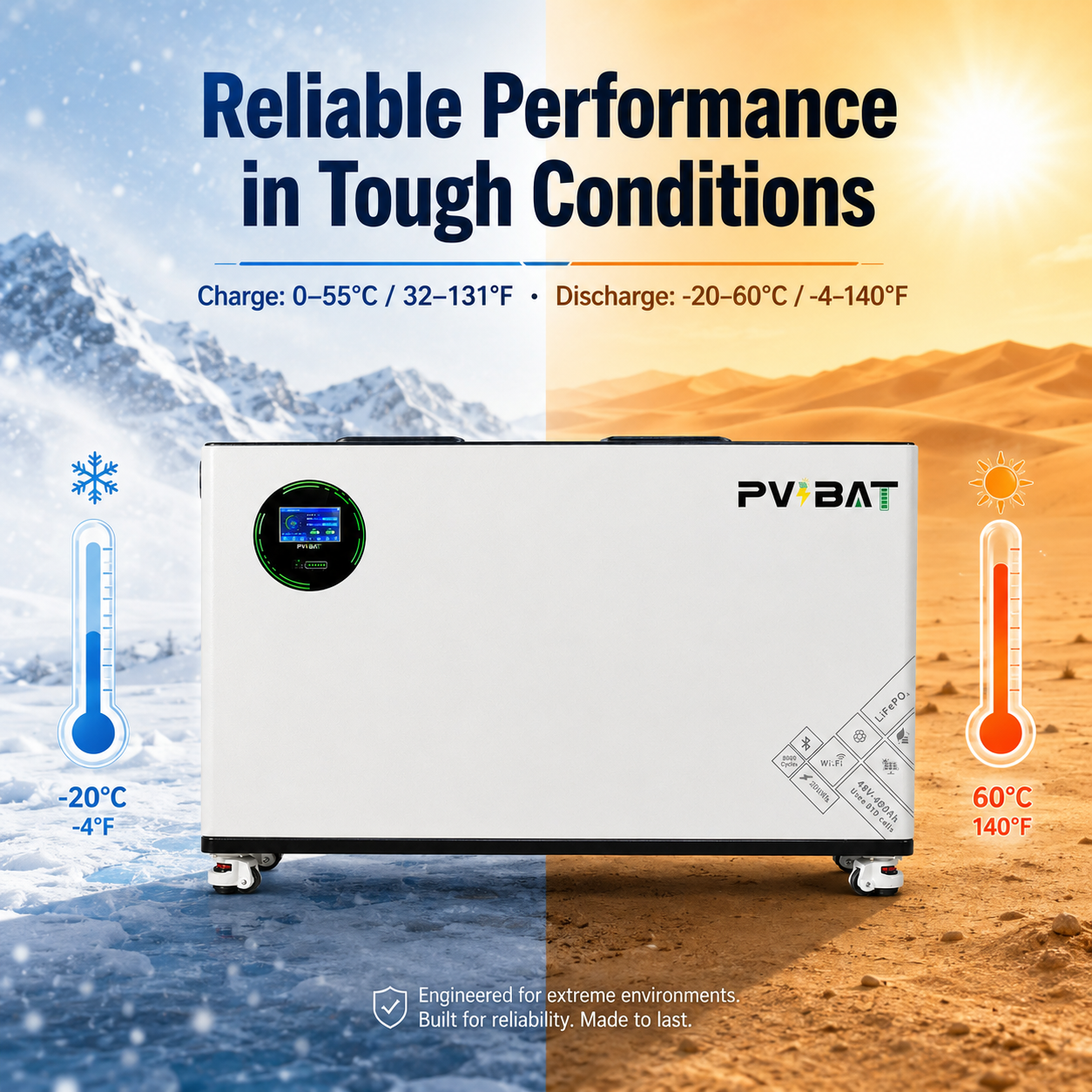

- Charge 0~55°C and discharge -20~60°C operating temperature range.
- IP54 ingress protection rating with wall-mounted / built-in casters installation method.
Technical specification comparison of PVBAT BEAR-48G1, Elephant-48628, FALCON-48G2, and TIGER-T4-72 battery systems
Parameter Item
BEAR-48G1
Elephant-48628
FALCON-48G2
TIGER-T4-72
Rated Energy
20.48kWh
32.15kWh
16.5kWh
24KWH
Rated Capacity
400Ah
628Ah
324Ah
Rated Voltage
51.2V
51.2V
51.2V
76.8V
Charging Cut-off Voltage
58.4V
58.4V
58.4V
87.6V
Discharge Cut-off Voltage
44.8V
44.8V
44.8V
67.2V
Max. Continuous Discharge Current (Per Port)
150A*2
150A*2
150A*2
175A
Battery Type
LiFePO4 (LFP)
LiFePO4 (LFP)
LiFePO4 (LFP)
LiFePO4 (LFP)
Cycle Life
8000 cycles @ 80% Depth of Discharge
8000 cycles @ 80% Depth of Discharge
10000 cycles @ 80% Depth of Discharge
8000cycles @ 80% Depth of Discharge
Expansion Capability
Up to 16 batteries in parallel
Up to 16 batteries in parallel
Up to 16 batteries in parallel
Up to 16 batteries in parallel
Operating Temperature Range
Charge 0~55°C / Discharge -20~60°C
Charge 0~55°C / Discharge -20~60°C
Charge 0~55°C / Discharge -20~60°C
Charge 0~55°C / Discharge -20~60°C
Communication Method
CAN/RS485
CAN/RS485
CAN/RS485
CAN/RS485
Monitoring Method
Wi-Fi / Bluetooth
Wi-Fi / Bluetooth
Wi-Fi / Bluetooth
Wi-Fi / Bluetooth
Battery Cell Configuration
16S1P
16S2P
16S1P
24S1P
Product Dimensions
1090x181x654mm /
42.91x7.13x25.75in
930x340x1035mm /
36.61 × 13.39 ×40.75 in
671x258x461mm /
31.85x10.71x18.31in
620×390×775mm /
24.41 × 15.35 × 30.51 in
Weight
150kg / 330lbs
266kg / 586.43 lbs
120kg / 265lbs
199kg / 438.72 lbs
Installation Method
Wall-mounted / built-in casters
built-in casters
Wall-mounted / built-in casters
built-in casters
Ingress Protection Rating
IP54
IP54
IP54
IP54
Tip: The table can scroll horizontally on mobile devices.
Download User Manual
Download the PVBAT BEAR-48G1 User Manual PDF for installation guidance,
operation instructions, safety information, and daily use reference.
Download User Manual
Frequently Asked Questions
A: Each unit offers 20.48kWh of energy storage capacity.
A: The product size is 1090 × 654 × 181mm.
A: The battery is only 181mm thick, while conventional wall-mounted batteries are usually around 250mm thick.
A: Up to 20 units can be connected in parallel.
A: The maximum system capacity can reach 409.6kWh.
A: The 20.48kWh model provides higher single-unit capacity, making it more suitable for larger homes, longer backup time, and higher energy storage requirements.
A: It can be installed on the wall in homes, garages, villas, utility rooms, solar storage systems, and small commercial sites.
A: Key selling points include 20.48kWh large capacity, 181mm ultra-thin body, wall-mounted installation, no floor space required, and expandability up to 409.6kWh.
PVBAT 20.48kWh Ultra-Thin Wall-Mounted LiFePO4 Energy Storage Battery
The PVBAT BEAR-48G1 20.48kWh ultra-thin wall-mounted LiFePO4 energy storage battery is designed for home solar energy storage, emergency backup power, and off-grid power applications. It is also suitable for villas, farms, small shops, small factories, and other small-scale energy storage projects.
Each unit provides 20.48kWh rated energy and 400Ah rated capacity with a 51.2V rated voltage. Its 1090x181x654mm ultra-thin body supports wall-mounted installation, helping save floor space while keeping the system layout clean and modern.
BEAR-48G1 supports up to 16 batteries in parallel, allowing total system capacity to expand to approximately 327.6kWh. This gives users flexible capacity planning for daily solar self-consumption, outdoor off-grid power supply, and longer-duration backup power for homes and small commercial sites.
The battery uses LiFePO4 (LFP) chemistry with an 8000-cycle design at 80% depth of discharge. It is built for stable long-term operation, reliable output, safer energy storage performance, and practical use in residential and small commercial energy systems.
- 20.48kWh rated energy and 400Ah rated capacity for home and small commercial storage needs.
- 51.2V LiFePO4 (LFP) battery system with 16S1P battery cell configuration.
- Supports up to 16 batteries in parallel, expanding system capacity to approximately 327.6kWh.
- 8000-cycle design at 80% depth of discharge for long-term stable operation.
- 150A*2 maximum continuous discharge current per port for reliable power output.
- Supports solar energy storage, peak-valley power management, outage backup, and off-grid power supply.
- CAN/RS485 communication with Wi-Fi / Bluetooth monitoring for system integration and visibility.
- 1090x181x654mm ultra-thin body for wall-mounted, space-saving installation.
- Charge 0~55°C and discharge -20~60°C operating temperature range.
- IP54 ingress protection rating with wall-mounted / built-in casters installation method.
| Parameter Item | BEAR-48G1 | Elephant-48628 | FALCON-48G2 | TIGER-T4-72 |
|---|---|---|---|---|
| Rated Energy | 20.48kWh | 32.15kWh | 16.5kWh | 24KWH |
| Rated Capacity | 400Ah | 628Ah | 324Ah | |
| Rated Voltage | 51.2V | 51.2V | 51.2V | 76.8V |
| Charging Cut-off Voltage | 58.4V | 58.4V | 58.4V | 87.6V |
| Discharge Cut-off Voltage | 44.8V | 44.8V | 44.8V | 67.2V |
| Max. Continuous Discharge Current (Per Port) | 150A*2 | 150A*2 | 150A*2 | 175A |
| Battery Type | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| Cycle Life | 8000 cycles @ 80% Depth of Discharge | 8000 cycles @ 80% Depth of Discharge | 10000 cycles @ 80% Depth of Discharge | 8000cycles @ 80% Depth of Discharge |
| Expansion Capability | Up to 16 batteries in parallel | Up to 16 batteries in parallel | Up to 16 batteries in parallel | Up to 16 batteries in parallel |
| Operating Temperature Range | Charge 0~55°C / Discharge -20~60°C | Charge 0~55°C / Discharge -20~60°C | Charge 0~55°C / Discharge -20~60°C | Charge 0~55°C / Discharge -20~60°C |
| Communication Method | CAN/RS485 | CAN/RS485 | CAN/RS485 | CAN/RS485 |
| Monitoring Method | Wi-Fi / Bluetooth | Wi-Fi / Bluetooth | Wi-Fi / Bluetooth | Wi-Fi / Bluetooth |
| Battery Cell Configuration | 16S1P | 16S2P | 16S1P | 24S1P |
| Product Dimensions | 1090x181x654mm / 42.91x7.13x25.75in |
930x340x1035mm / 36.61 × 13.39 ×40.75 in |
671x258x461mm / 31.85x10.71x18.31in |
620×390×775mm / 24.41 × 15.35 × 30.51 in |
| Weight | 150kg / 330lbs | 266kg / 586.43 lbs | 120kg / 265lbs | 199kg / 438.72 lbs |
| Installation Method | Wall-mounted / built-in casters | built-in casters | Wall-mounted / built-in casters | built-in casters |
| Ingress Protection Rating | IP54 | IP54 | IP54 | IP54 |
Tip: The table can scroll horizontally on mobile devices.
Download User Manual
Download the PVBAT BEAR-48G1 User Manual PDF for installation guidance, operation instructions, safety information, and daily use reference.
