The PVBAT TIGER-T4-72 isn’t just another small backup battery. It’s built for when you need real capacity and reliable power. With a 24kWh LiFePO₄ battery, 16.5kVA inverter, 120/240V split-phase power, and multiple NEMA outlets, it’s a complete energy storage solution for homes, workshops, RVs, emergencies, and small businesses.
Most compact systems need multiple modules to reach decent capacity. The TIGER-T4-72 comes ready to go—big power, all in one unit.
Why Choose the TIGER-T4-72?
24kWh Large Battery
A built-in 24kWh LiFePO₄ pack supports compatible essential loads such as refrigerators, lights, tools, and pumps after load and startup-surge review.
16.5kVA Inverter Rating
The integrated inverter delivers 16.5kVA apparent power with 13kW continuous active output—enough for bigger loads and heavy-duty backup use.
120/240V Split-Phase
Made for North American homes. Supports compatible 120V and 240V loads after checking voltage, running current, startup surge/LRA, connection method, and simultaneous loads.
Multiple NEMA Outlets
Plug-and-Play for Compatible Loads:
- NEMA 14-50R
- NEMA L14-30R
- Four 120V AC outlets
Connect compatible equipment directly to the appropriate TIGER output without permanent building wiring. Panel, transfer-switch, subpanel, and permanent building connections require a qualified electrician.
Safe & Durable LFP Chemistry
We use LiFePO₄ (LFP) batteries—stable, safe, and built to last.
8,000+ Cycles
Up to 8,000 cycles at 80% discharge—years of reliable daily and emergency use.
Easy to Move & Place
Floor-standing with built-in wheels. Move it where you need it; direct-compatible plug-in use does not require permanent building wiring.
Expandable 48V System
Start with one unit, add up to 16 batteries in parallel for bigger storage projects.

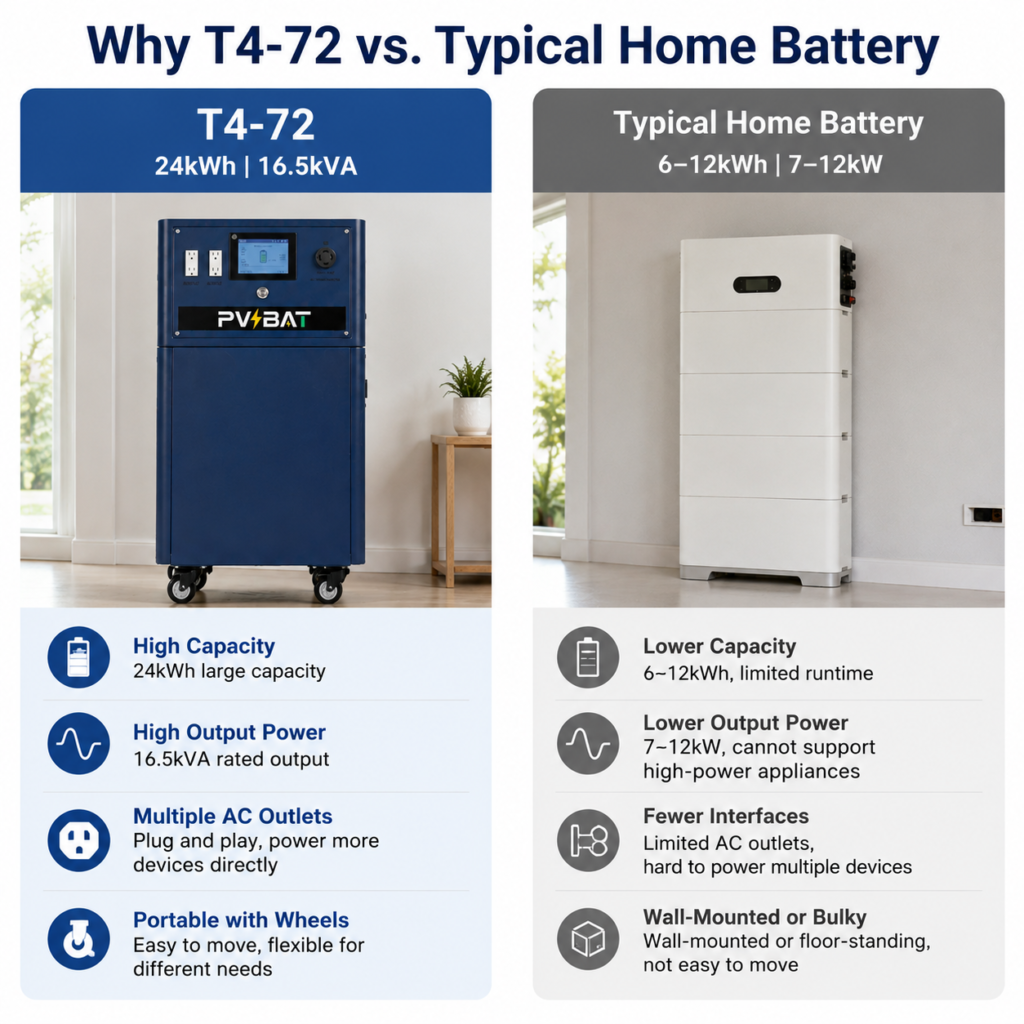

Advantage Comparison
Feature | PVBAT TIGER-T4-72 | Typical Consumer Backup | Typical Modular Home Battery |
Battery Capacity | 24kWh (built-in) | 6–12kWh | 5–15kWh |
Output Power | 16.5kVA | 7–12kW | 3–7kW per unit |
Battery Type | LiFePO₄ (LFP) | LFP/lithium | LFP/lithium |
Split-Phase | 120/240V | Some models | Needs setup |
Direct Outlets | NEMA 14-50R, L14-30R + 4×120V | Limited | Hardwired |
Mobility | Wheels, easy to move | Portable/semi | Fixed install |
Cycle Life | 8,000 @ 80% DoD | Varies | Varies |
Expansion | Up to 16 units | Limited | System-dependent |
Best For | Home backup, workshop, RV, emergency, small business | Home/personal backup | Whole-home storage |
Key Specifications
Specification | PVBAT TIGER-T4-72 |
Rated Energy | 24kWh |
Battery Voltage | 51.2V |
System Voltage | 48V |
Battery Chemistry | LiFePO₄ (LFP) |
Inverter Output | 16.5kVA |
AC Output | 120/240V split-phase |
Main AC Port | NEMA 14-50R |
Front Outlets | 4 × 120V + 1 × L14-30R |
PV Input | 90–230VDC (open circuit) |
PV Connector | BE175 |
AC Breaker | 63A |
AC Input | NEMA SS2-50P, 120/240V, 50A |
Cycle Life | 8,000 @ 80% DoD |
Communication | 2 × RS485 |
Monitoring | Wi-Fi / Bluetooth |
Temp Range | Charge: 0–55°C / Discharge: -20–60°C |
Expansion | Up to 16 batteries parallel |

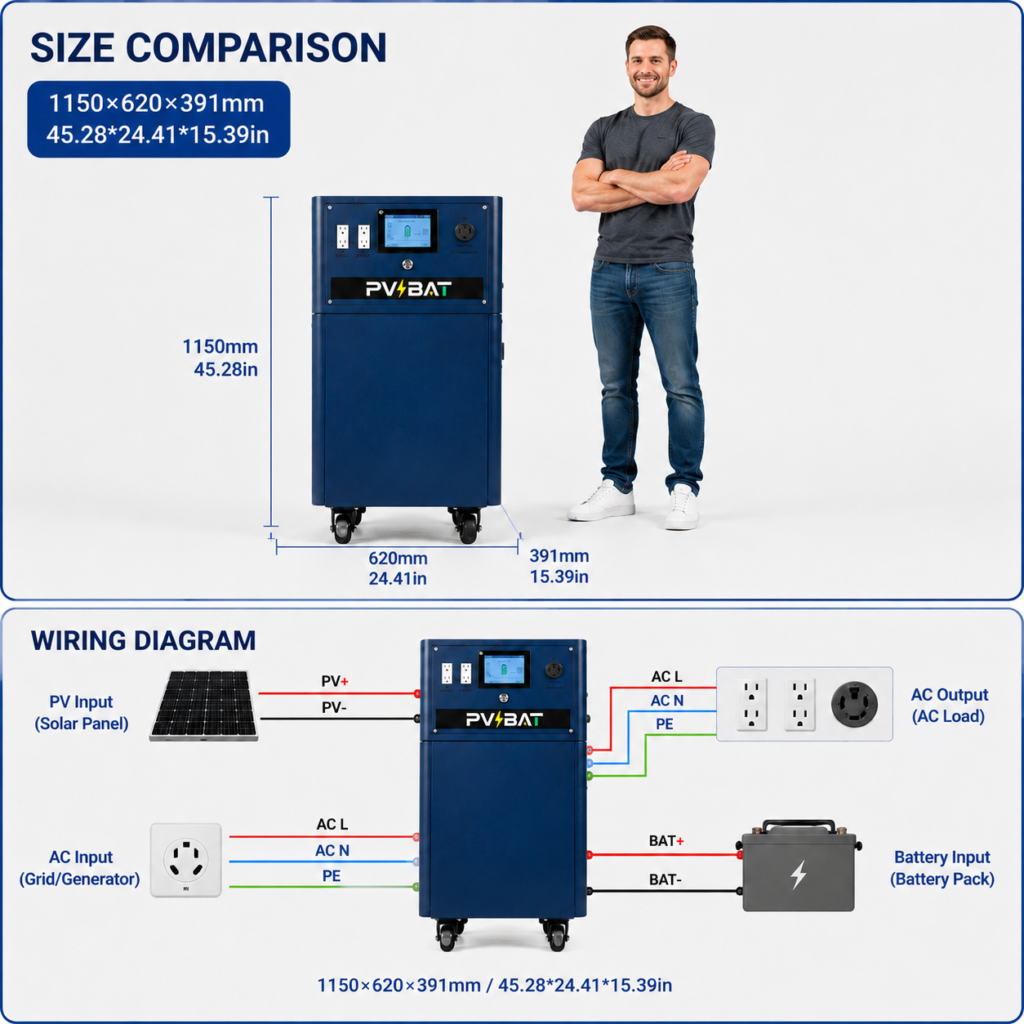

Dimensions | 1150 × 620 × 391 mm |
Weight | Configuration and shipping weight confirmed by quote |
Installation | Floor-standing, wheels included |
Warranty | 10 years |
Shop now →
Short Homepage Version
More Capacity. More Power. Easier to Use.
The PVBAT TIGER-T4-72 packs a 24kWh battery, 16.5kVA inverter, 120/240V power, and multiple NEMA outlets into one mobile unit.
Perfect for home backup, emergencies, workshops, RVs, and small businesses. Big power, simple setup.
Key Highlights
- 24kWh LiFePO₄ battery
- 16.5kVA high power
- 120/240V split-phase
- Multiple NEMA outlets
- 8,000+ cycles
- Expandable design
- Easy to move
- Wi-Fi/Bluetooth monitoring
- 10-year warranty
Disclaimer
Specs may change based on configuration and environment. Runtime depends on your loads and battery level. Always have a qualified electrician check compatibility with wiring, switches, solar, and grid before installation.
