PVBAT ELEPHANT-48628 32.15kWh 51.2V 628Ah LiFePO4 Battery Cabinet
The PVBAT ELEPHANT-48628 is a 32.15kWh high-capacity LiFePO4 battery cabinet built for users who need more energy storage than standard residential battery modules. With 51.2V rated voltage and 628Ah rated capacity, it is designed for home backup power, solar energy storage, off-grid systems, farms, villas, workshops, telecom backup, and commercial energy storage projects.

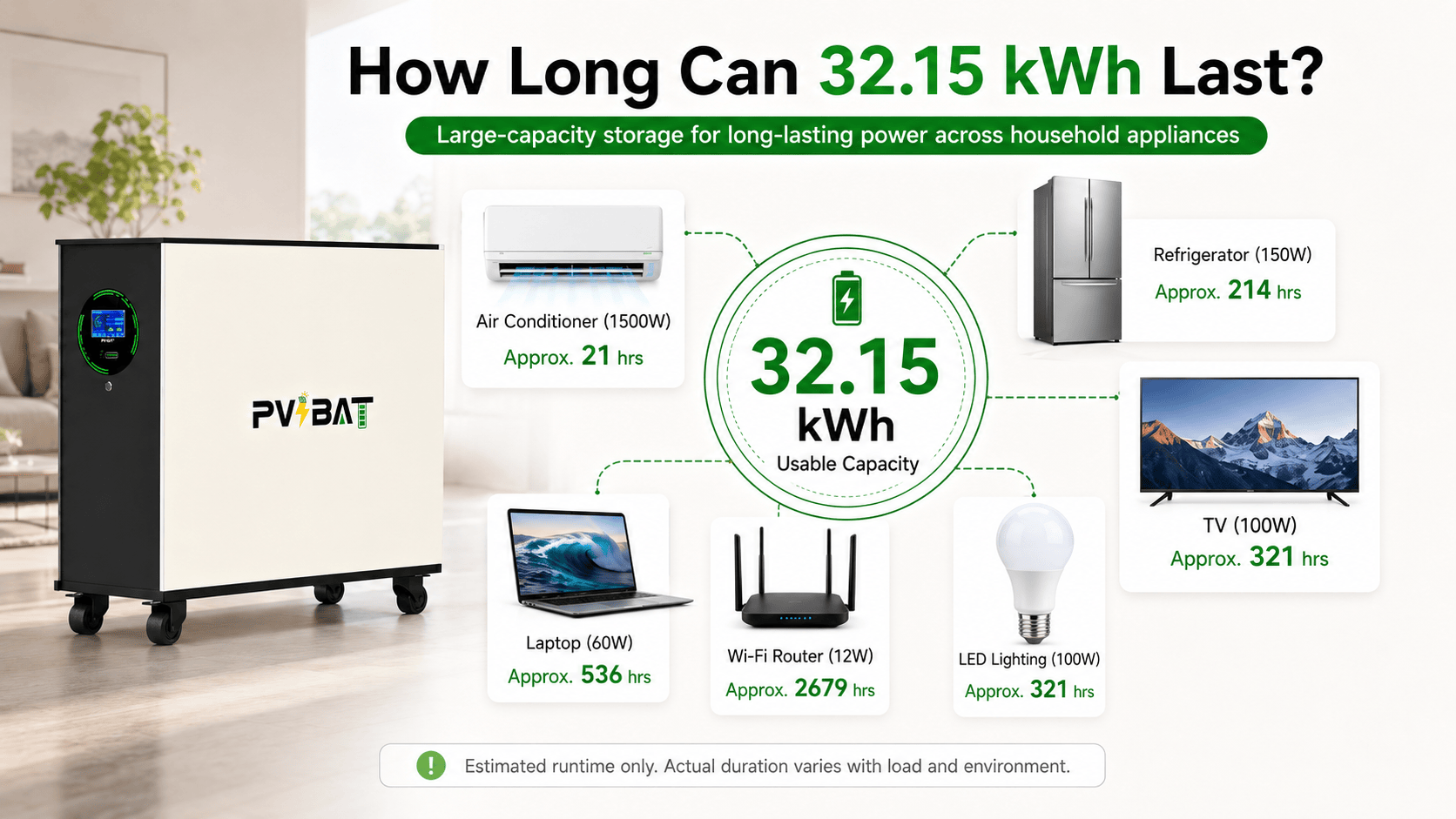

Each ELEPHANT-48628 battery cabinet provides 32.15kWh of rated energy in one floor-standing unit. It can store solar energy during the day, support backup power during outages, and provide large-capacity battery storage for projects with higher daily energy demand. Actual usable runtime depends on connected load, inverter efficiency, battery state of charge, system configuration, temperature, and operating conditions.
The battery is built on a 48V-class platform with 51.2V rated voltage, 58.4V charging cut-off voltage, and 44.8V discharge cut-off voltage. It is designed to work with compatible low-voltage hybrid inverters, solar inverters, chargers, and energy storage system controllers. Final compatibility should be confirmed based on inverter brand, communication protocol, firmware, current rating, and installation design.
For larger storage requirements, ELEPHANT-48628 supports up to 16 batteries in parallel, providing approximately 514.4kWh of total storage capacity when fully expanded. This makes it suitable for scalable residential, agricultural, commercial, telecom, and light industrial energy storage projects.
The system supports CAN/RS485 communication, Wi-Fi and Bluetooth monitoring, IP54 ingress protection, and built-in casters for easier deployment and maintenance. Its LiFePO4 battery design supports 8000 cycles at 80% depth of discharge, making it suitable for long-term backup power, solar storage, and daily cycling applications.
ELEPHANT-48628 is a battery cabinet and does not include a built-in inverter. It should be paired with a compatible inverter, hybrid inverter, MPPT charger, or energy storage control system. For home panel connection, grid-tied systems, permanent electrical installation, or multi-battery expansion, installation should be completed by qualified professionals in accordance with local electrical codes and safety requirements.
- 32.15kWh rated energy and 628Ah rated capacity for long-duration backup power and solar energy storage.
- 48V-class LiFePO4 battery platform with 51.2V rated voltage for compatible low-voltage energy storage systems.
- 58.4V charging cut-off voltage and 44.8V discharge cut-off voltage for protected battery operation.
- 150A×2 maximum continuous discharge current for high-demand storage applications when paired with a compatible inverter.
- Expandable up to 16 batteries in parallel for approximately 514.4kWh total storage capacity.
- CAN/RS485 communication for compatible inverter, charger, and energy management system integration.
- Wi-Fi and Bluetooth monitoring for easier battery status and performance checking.
- 8000-cycle design at 80% depth of discharge for long-term backup and daily cycling use.
- IP54 ingress protection for suitable indoor, garage, utility room, and sheltered installation environments.
- Built-in casters and vertical cabinet design for easier movement, placement, deployment, and maintenance.

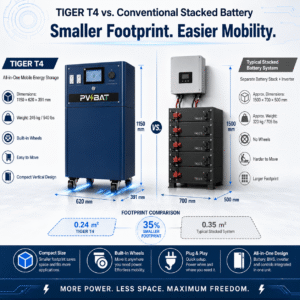

| Parameter Item | Elephant-48628 | Bear-48G1 | Falcon-48G2 | Tiger-T4-72 |
|---|---|---|---|---|
| Model | Elephant-48628 | Bear-48G1 | Falcon-48G2 | Tiger-T4-72 |
| Rated Energy | 32.15kWh | 20.48kWh | 16.5kWh | 24kWh |
| Rated Capacity | 628Ah | 400Ah | 324Ah | — |
| Rated Voltage | 51.2V | 51.2V | 51.2V | 76.8V |
| Charging Cut-off Voltage | 58.4V | 58.4V | 58.4V | 87.6V |
| Discharge Cut-off Voltage | 44.8V | 44.8V | 44.8V | 67.2V |
| Max. Continuous Discharge Current (Per Port) | 150A×2 | 150A×2 | 150A×2 | 175A |
| Battery Type | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| Cycle Life | 8000 cycles @ 80% Depth of Discharge | 8000 cycles @ 80% Depth of Discharge | 10000 cycles @ 80% Depth of Discharge | 8000 cycles @ 80% Depth of Discharge |
| Expansion Capability | Up to 16 batteries in parallel | Up to 16 batteries in parallel | Up to 16 batteries in parallel | Up to 16 batteries in parallel |
| Operating Temperature Range | Charge 0~55°C / Discharge -20~60°C | Charge 0~55°C / Discharge -20~60°C | Charge 0~55°C / Discharge -20~60°C | Charge 0~55°C / Discharge -20~60°C |
| Communication Method | CAN/RS485 | CAN/RS485 | CAN/RS485 | CAN/RS485 |
| Monitoring Method | Wi-Fi / Bluetooth | Wi-Fi / Bluetooth | Wi-Fi / Bluetooth | Wi-Fi / Bluetooth |
| Battery Cell Configuration | 16S2P | 16S1P | 16S1P | 24S1P |
| Product Dimensions | 930×340×1035mm / 36.61 × 13.39 × 40.75 in |
1090×181×654mm / 42.91 × 7.13 × 25.75 in |
671×258×461mm / 31.85 × 10.71 × 18.31 in |
620×390×775mm / 24.41 × 15.35 × 30.51 in |
| Weight | 266kg / 586.43lbs | 150kg / 330lbs | 120kg / 265lbs | 199kg / 438.72lbs |
| Installation Method | Built-in casters | Wall-mounted / built-in casters | Wall-mounted / built-in casters | Built-in casters |
| Ingress Protection Rating | IP54 | IP54 | IP54 | IP54 |
Tip: The table can scroll horizontally on mobile devices.
Note: Runtime, usable capacity, discharge performance, and system compatibility depend on inverter configuration, battery quantity, load size, battery state of charge, ambient temperature, wiring design, and installation conditions.
Download ELEPHANT-48628 User Manual
Download the PVBAT ELEPHANT-48628 User Manual PDF for battery specifications, communication settings, installation guidance, operation instructions, safety information, monitoring setup, and maintenance reference.
